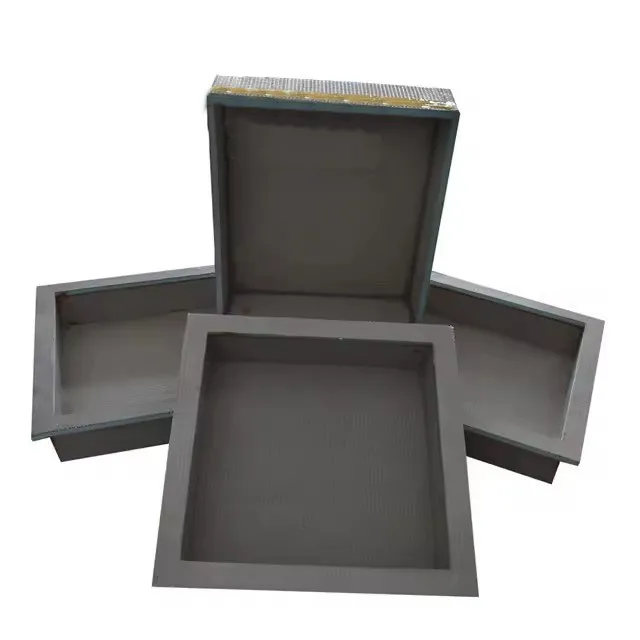

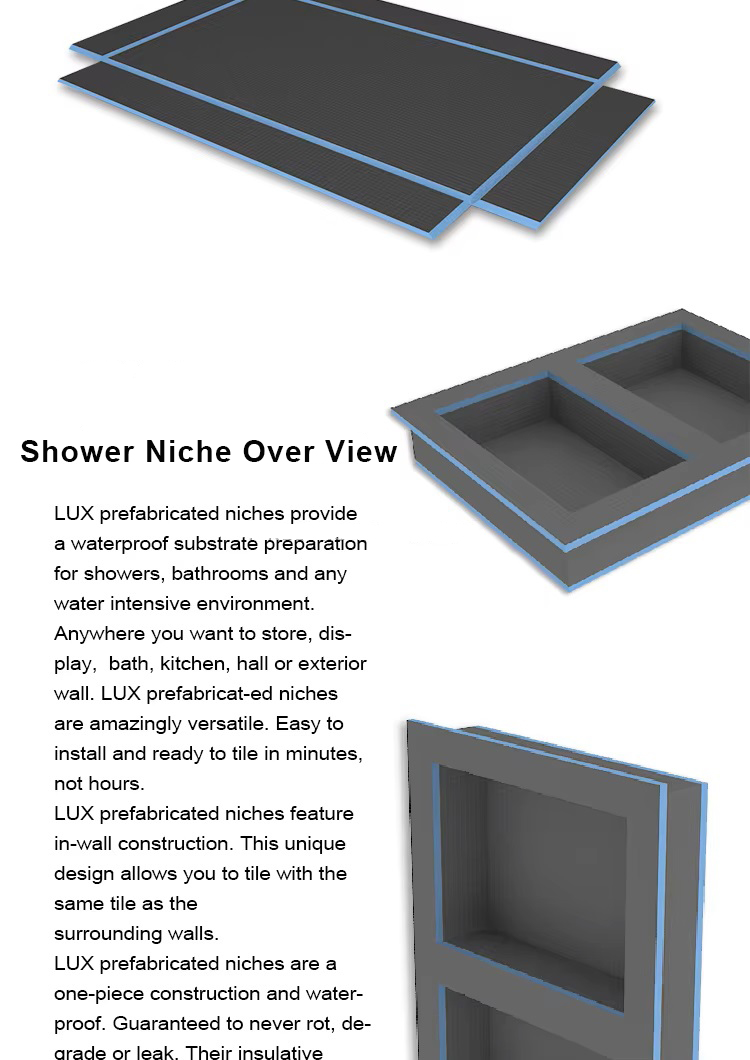

They provide waterproof substrate preparation for showers, bathrooms and any environment with high water consumption. Shower niches are one-piece structures and are waterproof. Perfect for all your shower needs, our shower niches install quickly and safely and integrate flush into the wall panel assembly.
Products Description

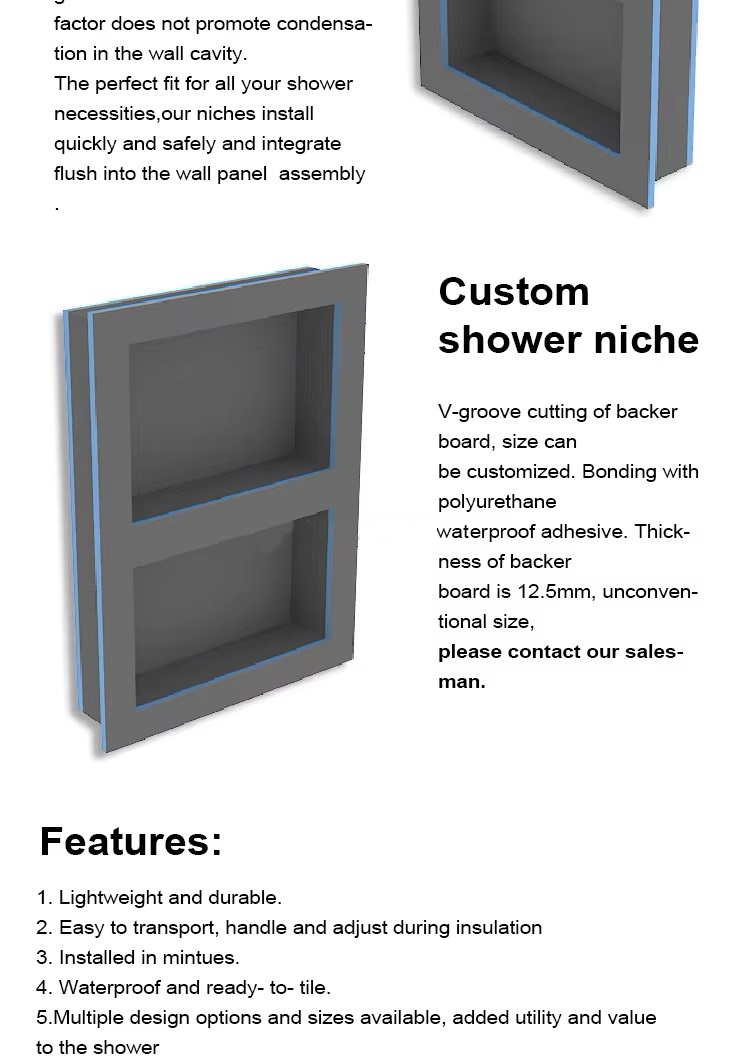

Adding a shelf in your bathroom or wetroom is a fantastic way of adding extra space for your toiletries and bathroom essentials.Shower Niches are low-cost waterproof solutions that are designed to provide an easy way of creating shelf space within your wetroom or bathroom. Whether you are building your own wetroom or looking to renovate your existing bathroom, Shower Niches are an ideal ready to tile solution.

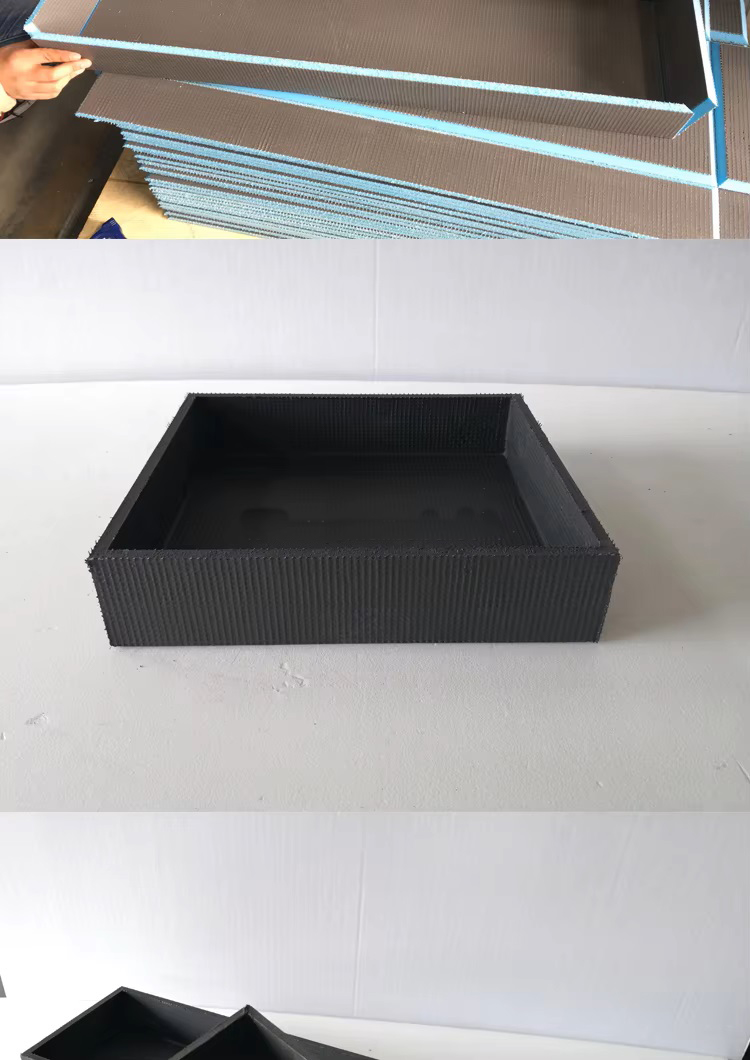

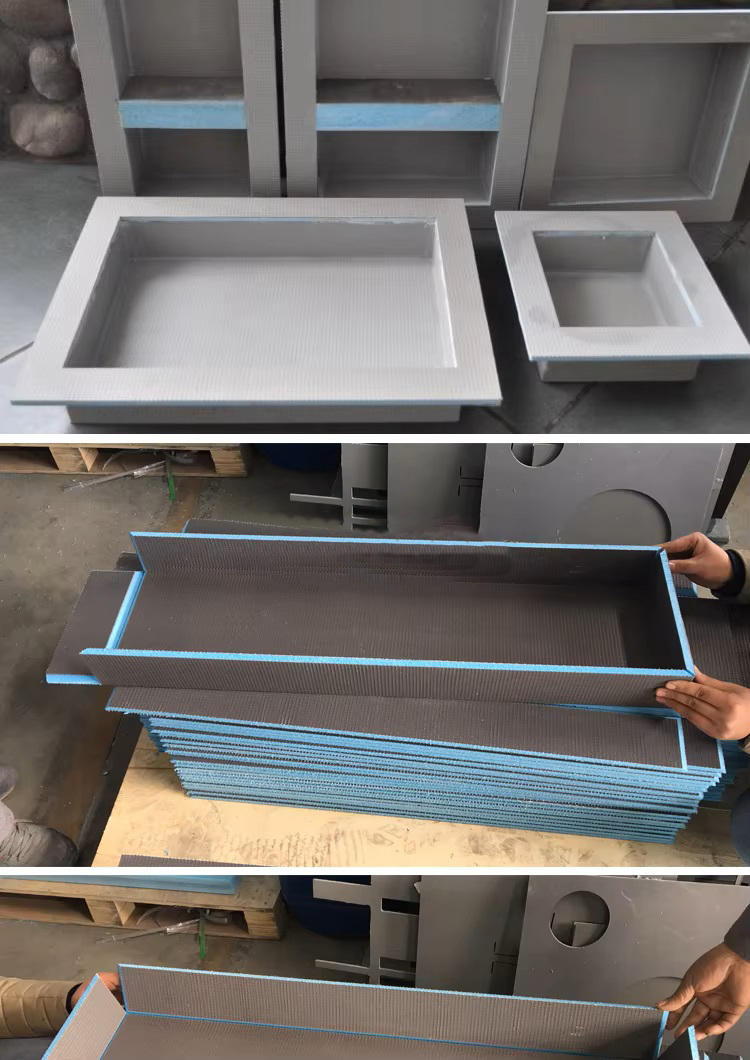

Shower Niches are made out of XPS Foam, coated with a polymer cenent mortar and a fibreglas mesh which provides a sturdy tileable surface for you to tile onto. In combination with Tile Backer Boards, creating your own bathroom or wetroom has never been easier.
01
Heat insulation
This material also has excellent thermal insulation effect, which helps improve the energy efficiency of the building and reduce energy consumption.
02
Waterproof
XPS backer board has a certain waterproof performance, which can protect the building from eroding from water.
03
Sound insulation
XPS backer board also has a certain sound insulation effect, which can reduce the transmission of noise.
04
Convenient construction
It is easy to build and carry, the installation process is fast and simple, and the construction efficiency is improved
05
Sound insulation and noise reduction
Tile backer board has excellent sound insulation performance, with a noise reduction of up to 21 decibels.
06
Safety and environmental protection
Applicable environmentally friendly materials, 0 formaldehyde
Products Video

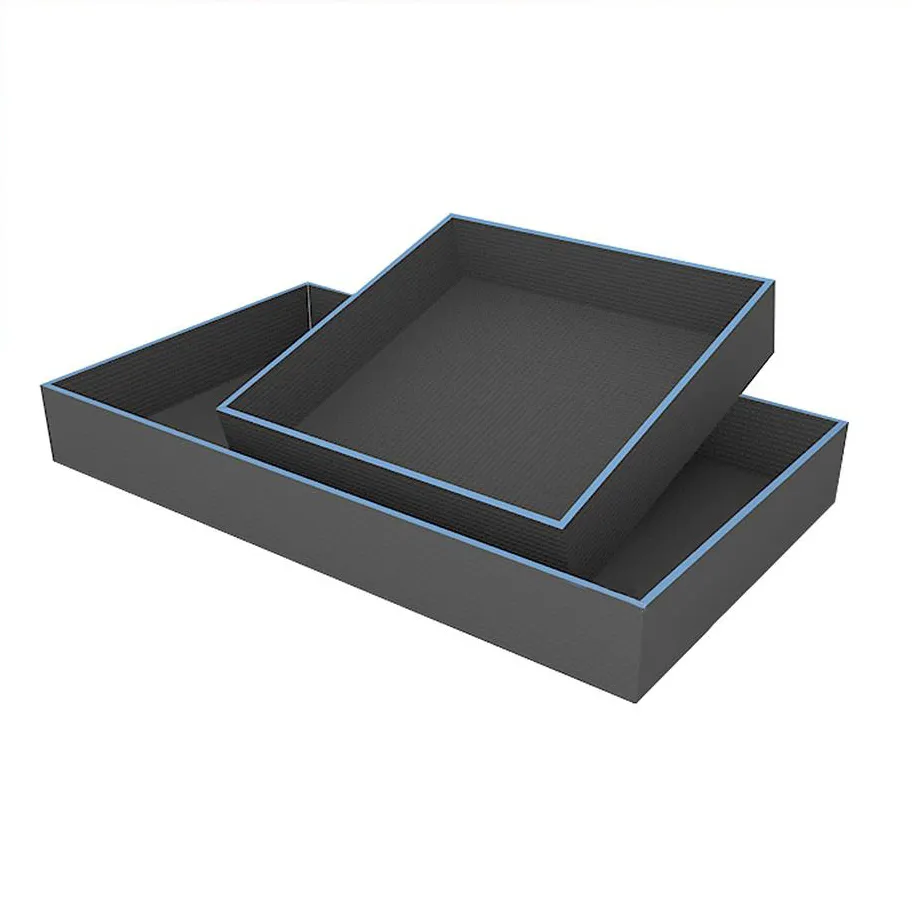

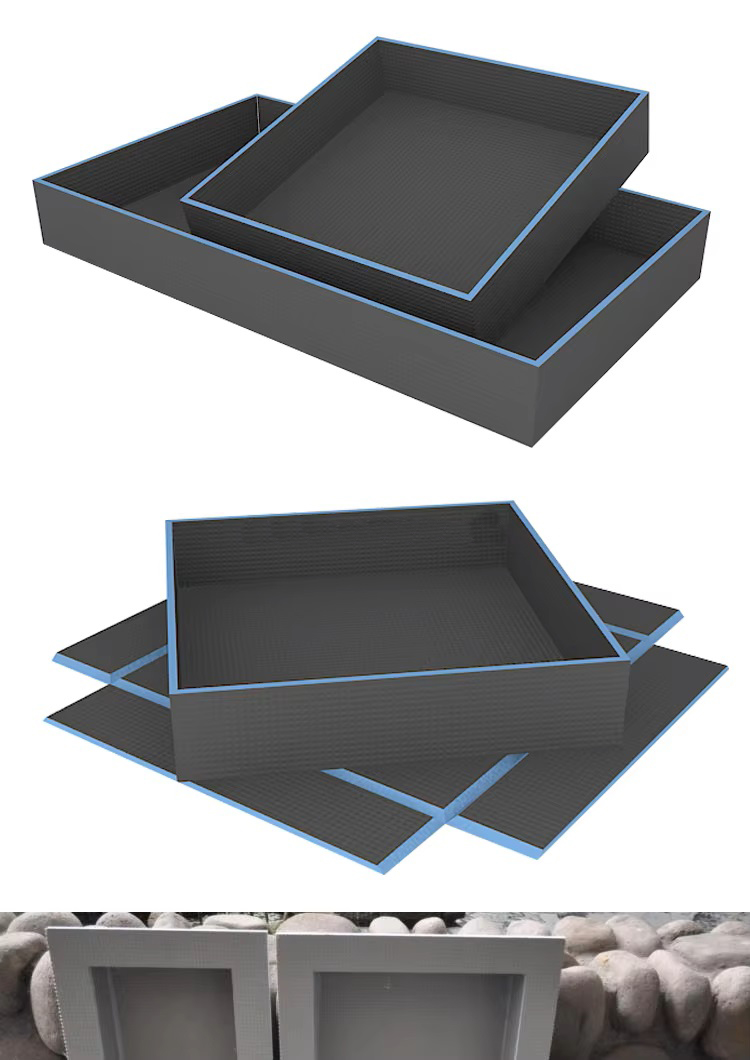

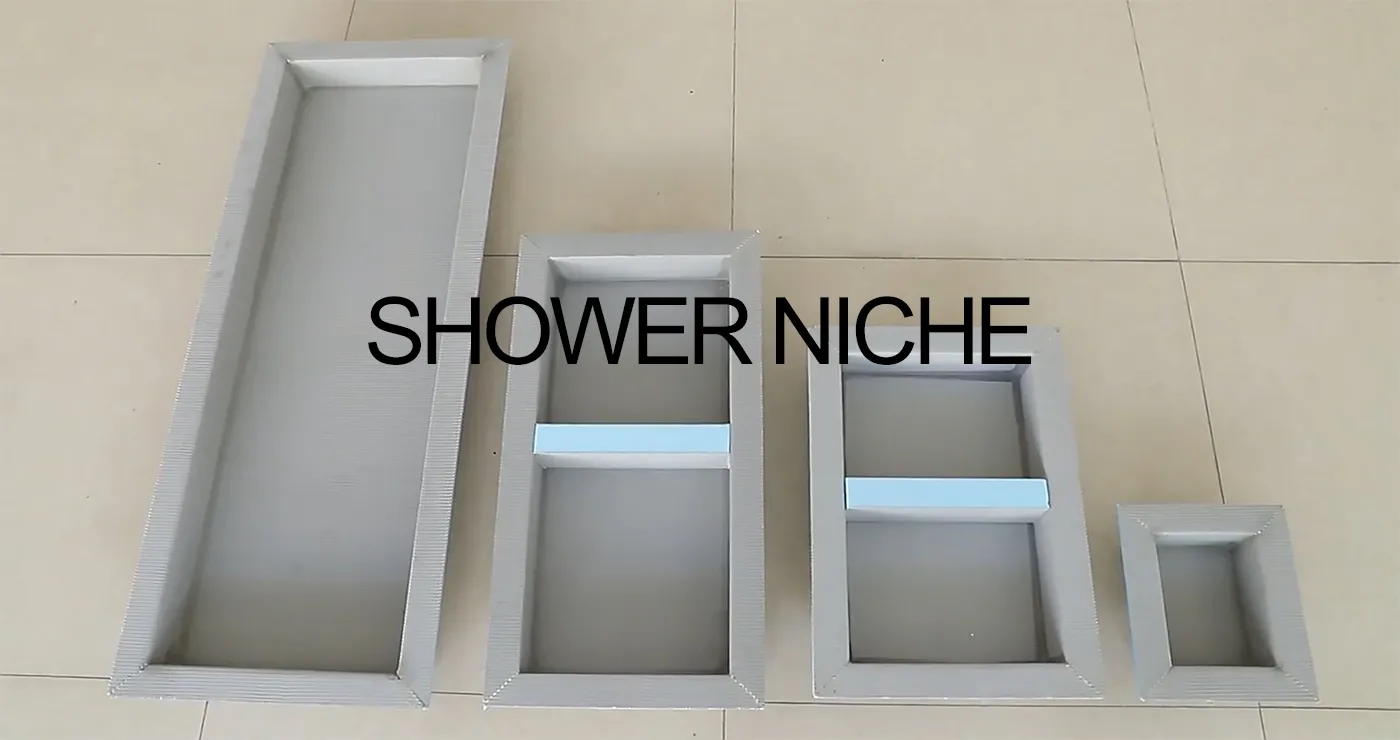

Size Chart
| Size&Style | Packaging(set/carton) | Material |
| 8*8" Soap | 1 | XPS foam, fiberglass mesh and cement |
| 12*12" Square | 1 | |

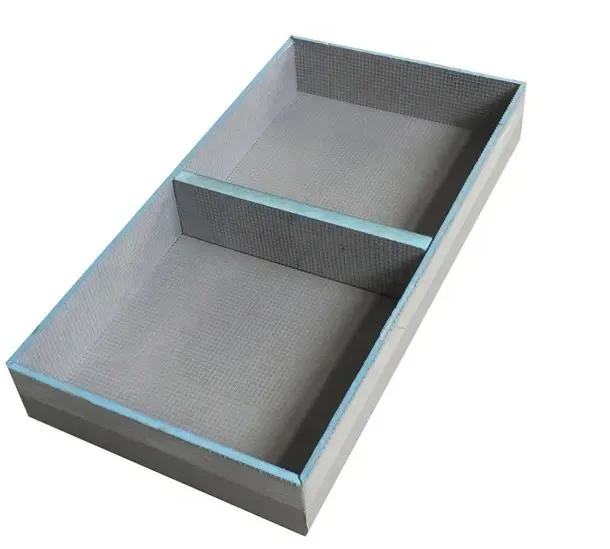

| 8*6" & 8*12" Narrow Combo | 1 | |
| 12*6" & 12*12" Wide Combo | 1 | |
| 12*20" Mega | 1 |
Technical Data
| Propery | Standard | Value |
| XPS Foam Density | DIN 53420 | 33±1kg/m³ |
| Thermal Conductivity | EN 12167 | 0.033W/m.k |
| Compressive Strength(10% deflection) | EN 826 | 400kpa(30 tonnes/m²) |
| Flexural Strength | ASTM C203 | 0.030±0.02Mpa |
| Water Absorption(2-day immersion) | ISO 2896 | 0.2% by volume |
| Water Absorption(Capillary) | DIN 53428 | Zero |
| Water Vapour Permeability(μ) | DIN 52615 | 110-225μ |
| Water Vapour Permeability | ASTM E-96 | 0.028ng/Pa.m.s |
| Maximum Tile Loading Weight | CERAM 121107 | 62kg/m² |
| Flammability | EN 13501-1 | Class E |
| Impact Sound Reduction | EN 824 | dLw=21 |
| EU Controlled Substances | N/A | none |
About Us
Qingdao ZCxps lmport and Export Co.,Ltd. is a comprehensive enterprise specializing in building energy saving and environmental protection insulation materials. The main products of the company are XPS insulation board, Tile backer board,Underfloor heating board, Rock wool,etc. The company has strong technical force, advanced production equipment and scientific and perfect quality assurance system, is involved in the integration of new building engineering materials insulation structure, green integrated assembly and decoration engineering and other fields of the backbone enterprises, is a research and development, production, sales, service in one of the modern company.
Certificate
Qingdao ZCxps lmport and Export Co.,Ltd. has passed CE certification, ERP certification, CUPC certification and SGS certification, etc. In terms of company management, ZCxps adopts ERP management system to fully control business processes such as production, procurement, sales and finance, and achieve excellent economic benefits.

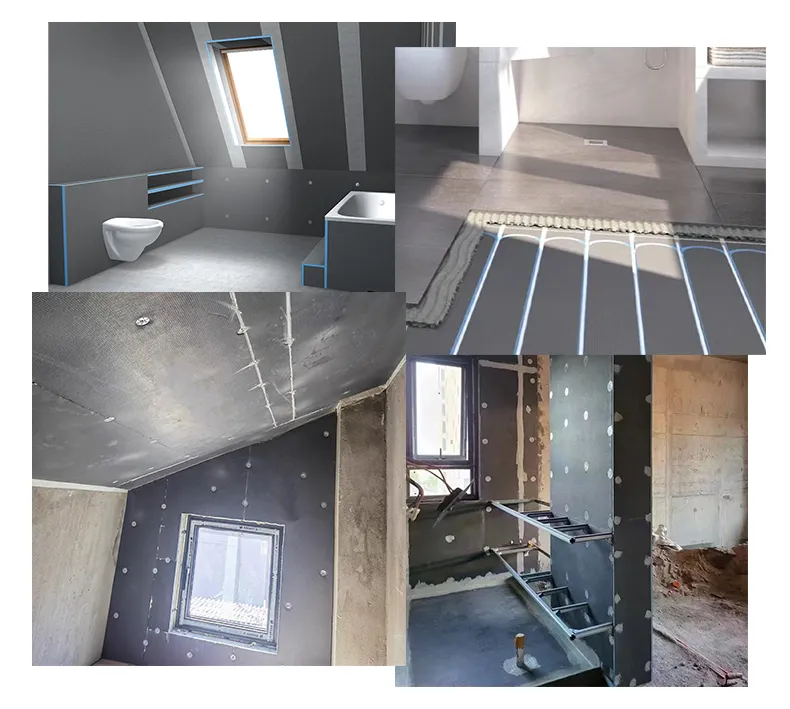

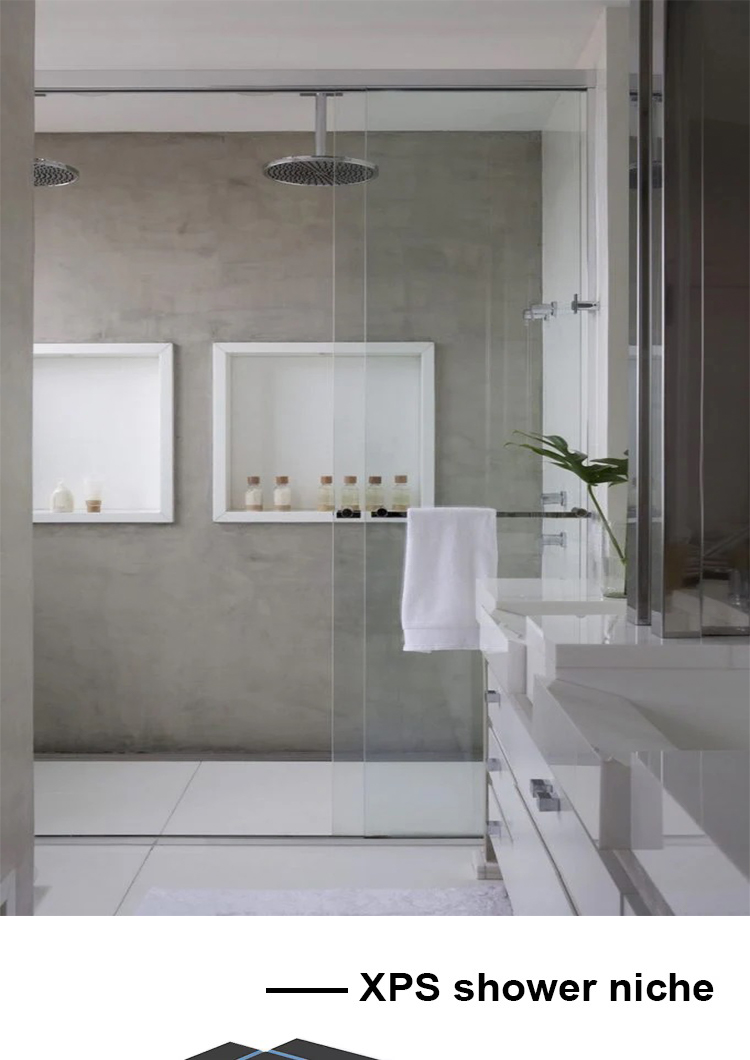

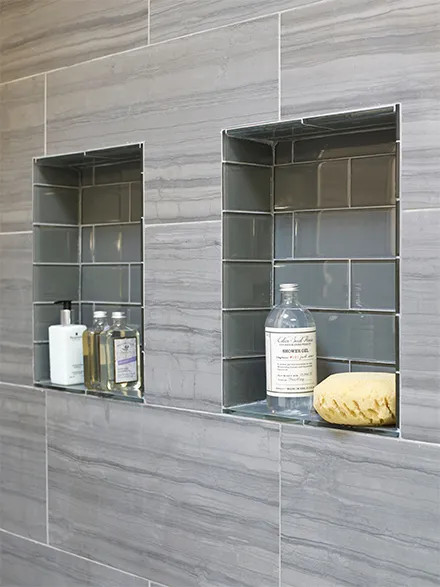

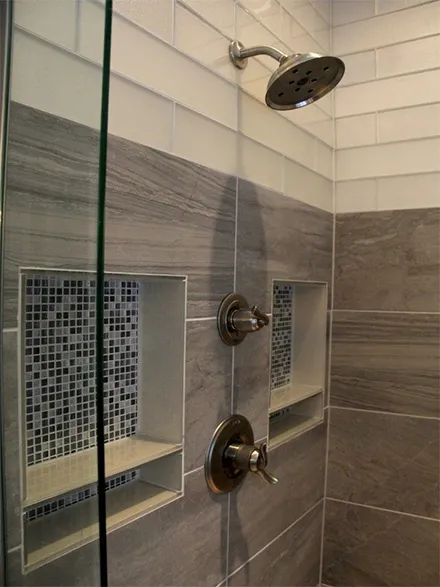

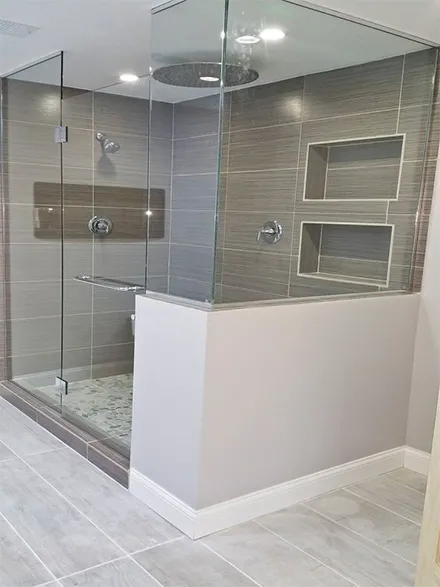

Application Scenario
Exhibition

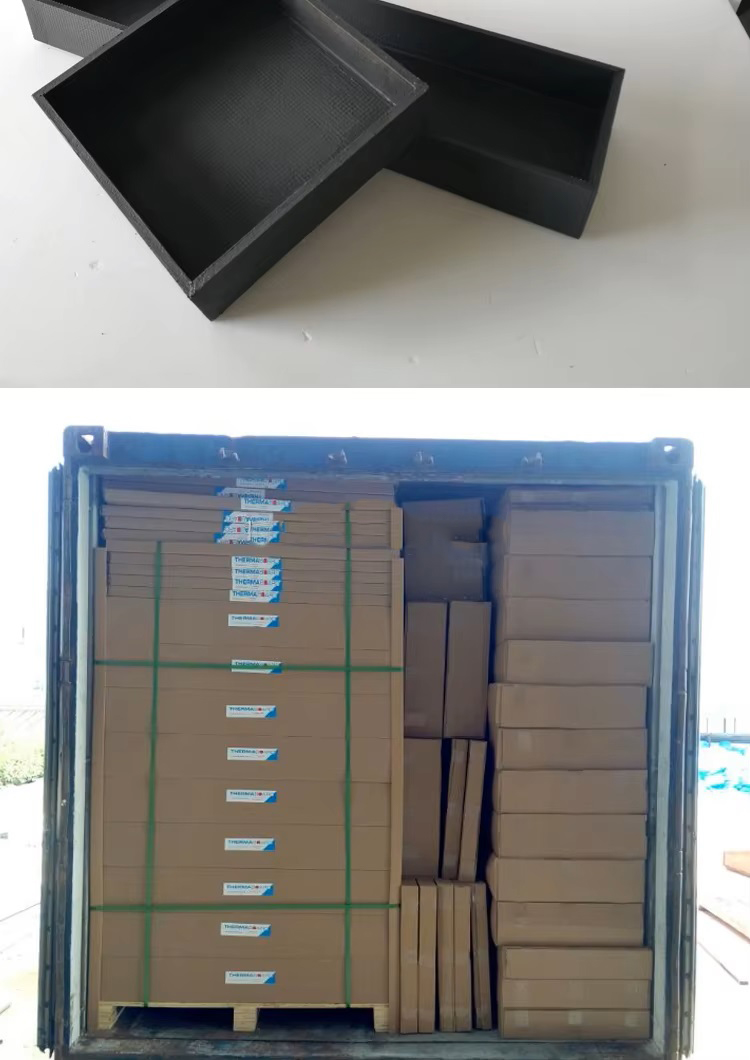

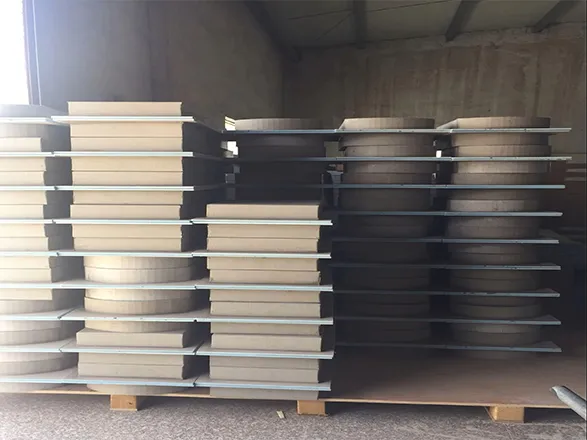

Packaging Shipping
