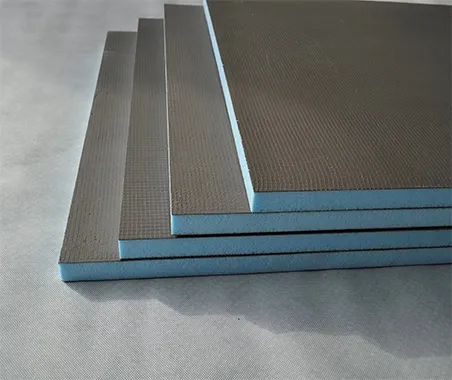

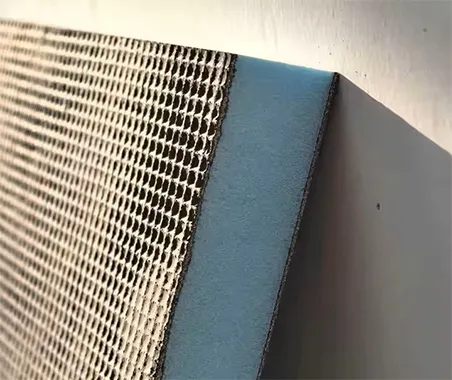

Made from an extruded polystyrene foam, tile backer boards are water-repellent and easy to work with. Finished on both sides with a special coating, they are ready to be tiled, rendered or plastered.
· Has good thermal insulation
· Lightweight and easy to handle
· Can be cut with a utility knife
Products Description
Backer boards are prefabricated sheets that are often attached to walls and floors to form a sturdy base onto which tiles can be laid. They have a perfectly level surface to tile onto, allowing for more weight (up to 200kg per m2)than a regular plastered wall.
Backer boards serve as a stable and moisture-resistant surface to support and protect tiles from damage and moisture-related issues. As a result, they are commonly used in wet areas like bathrooms, kitchens, and showers, as wel as for exterior applications.
Tile backer boards are available in a range of sizes (6-50mm thick), some boards also have insulation and soundproofing properties.
01
Heat insulation
This material also has excellent thermal insulation effect, which helps improve the energy efficiency of the building and reduce energy consumption.
02
Waterproof
XPS backer board has a certain waterproof performance, which can protect the building from eroding from water.
03
Sound insulation
XPS backer board also has a certain sound insulation effect, which can reduce the transmission of noise.
04
Convenient construction
It is easy to build and carry, the installation process is fast and simple, and the construction efficiency is improved
05
Sound insulation and noise reduction
Tile backer board has excellent sound insulation performance, with a noise reduction of up to 21 decibels.
06
Safety and environmental protection
Applicable environmentally friendly materials, 0 formaldehyde
Application Scenario

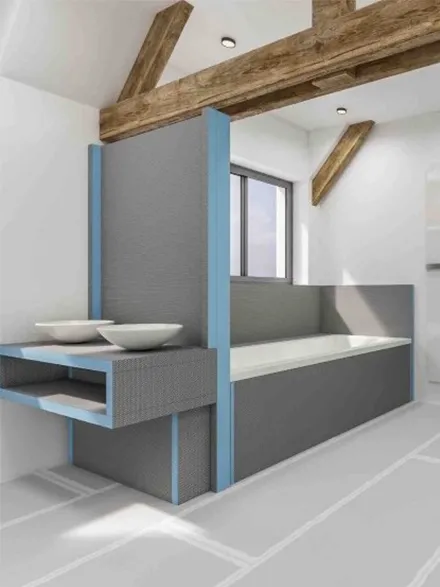

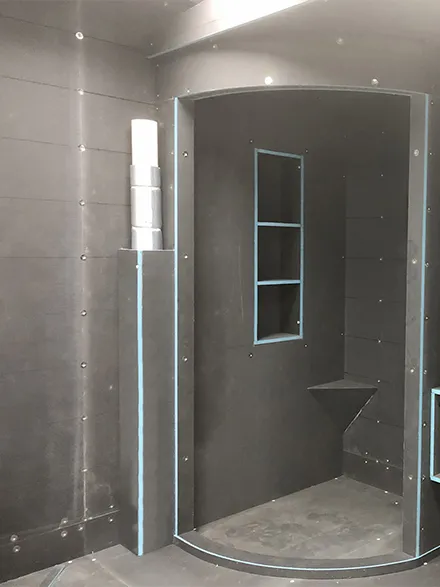

Bathroom walls and floors

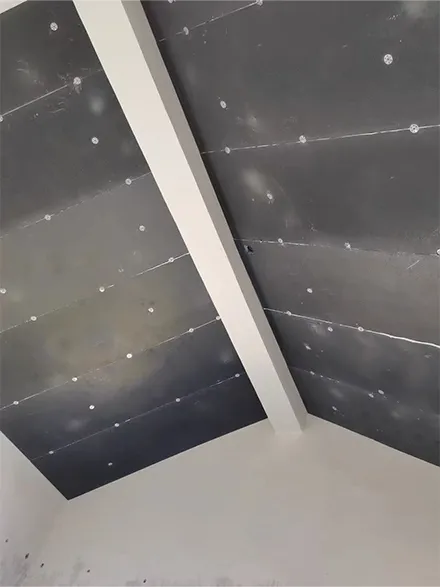

suspended ceiling
Sewer pipe package

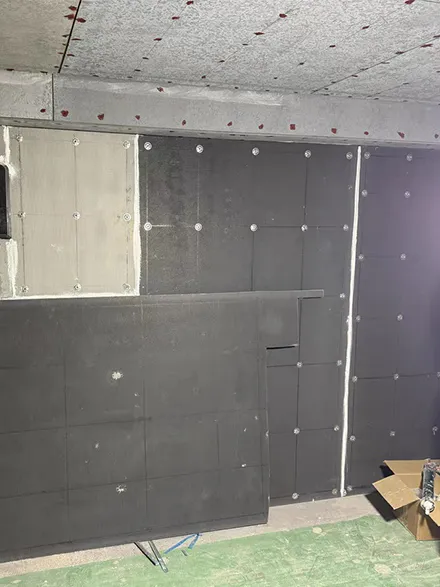

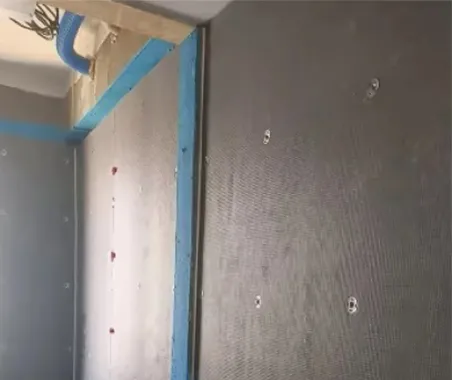

Indoor wall

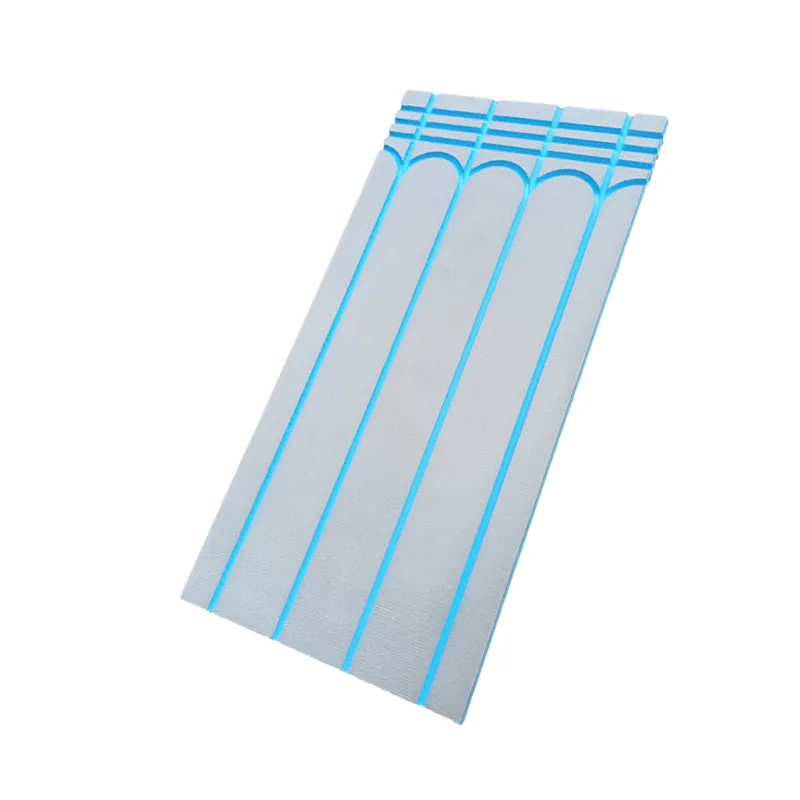

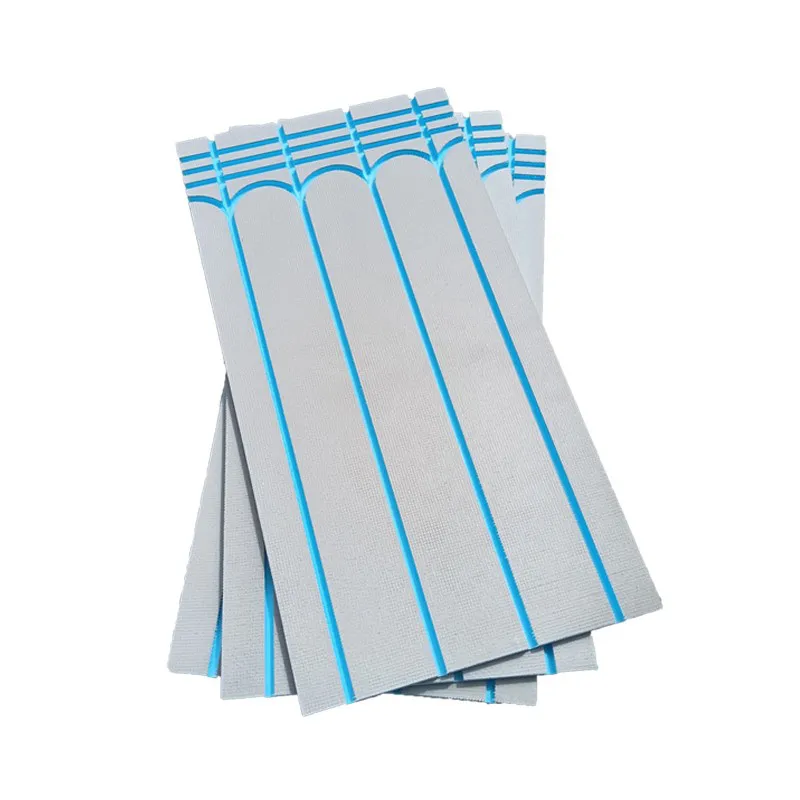

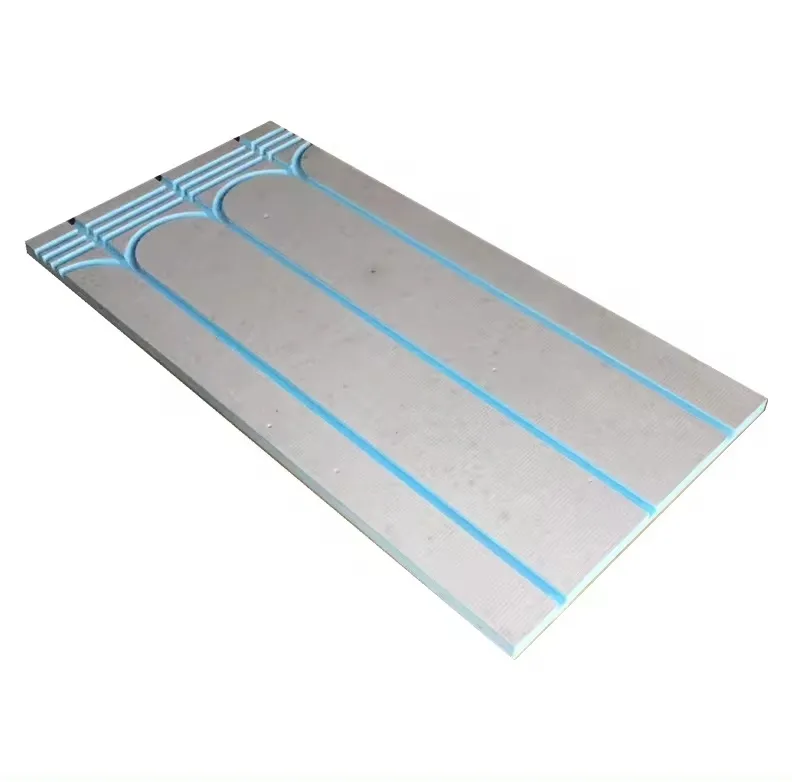

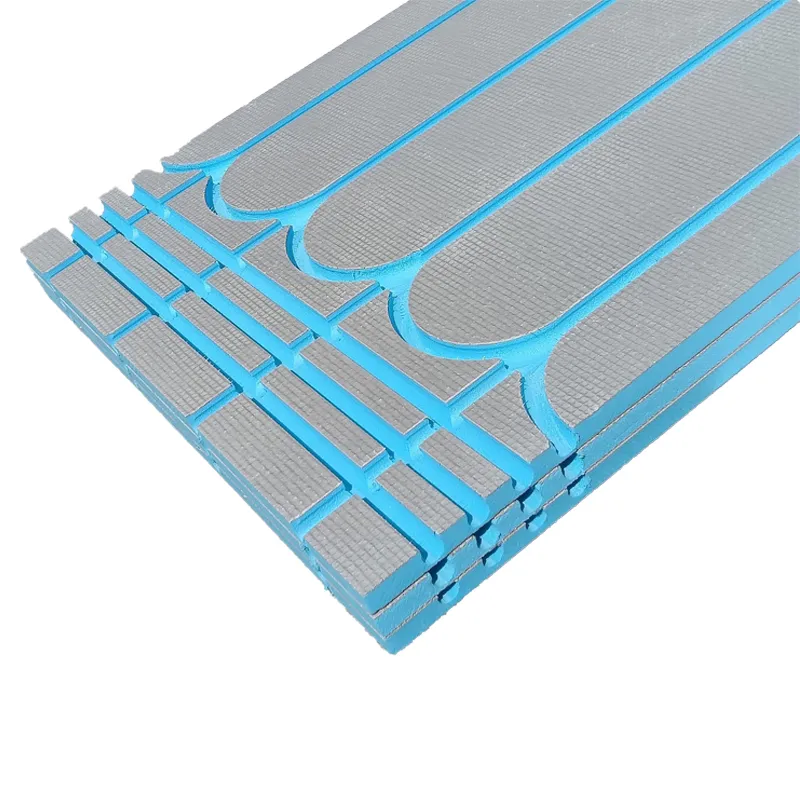

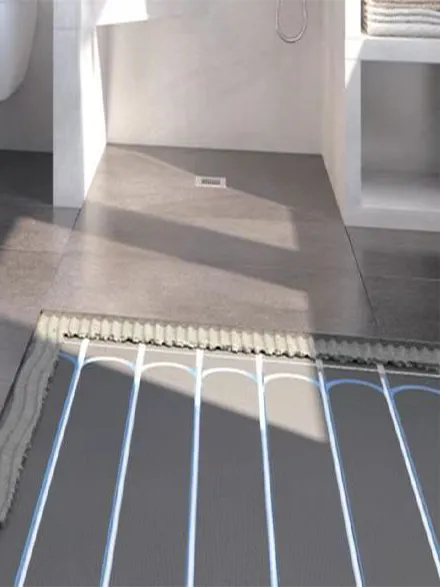

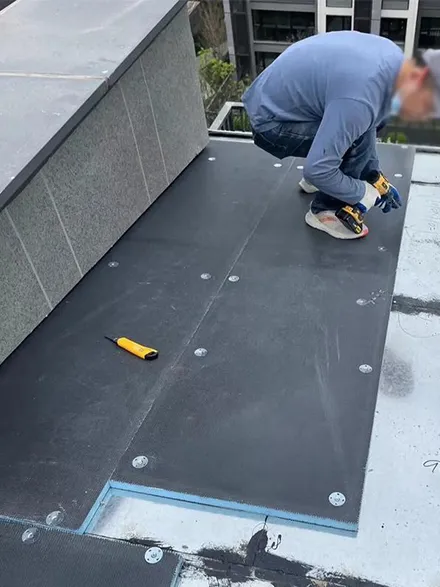

Underfloor heating
Specifications
| Project | Unit | Parameter | |
| Density | Kg/m³ | ≥35 | |
| Thermal Conductivity（Average temperature: 25℃） | W/(m*k) | ≤0.030 | |
| Compressive Strength | Kpa | ≥500 | |
| Dimensional Stability（70±2℃，48h） | % | ≤2.0 | |
| Water Absorption Rate (immersion in water for 96 hours) | Val-% | ≤1.0 | |
| Water Vapor Transmission Coefficient | ng/（m·s·Pa） | ≤3.0 | |
Size | Length | mm | 1200/2440/customize |
| Width | mm | 600/1220/customize | |
| Thickness | mm | 6-100 | |
| Flame Retardant | A1 | ||
| Color | Blue | ||
