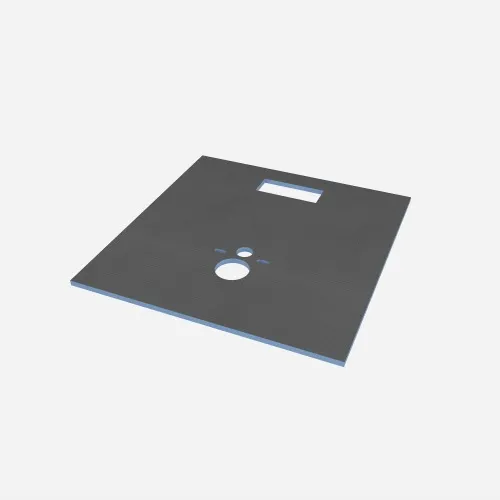

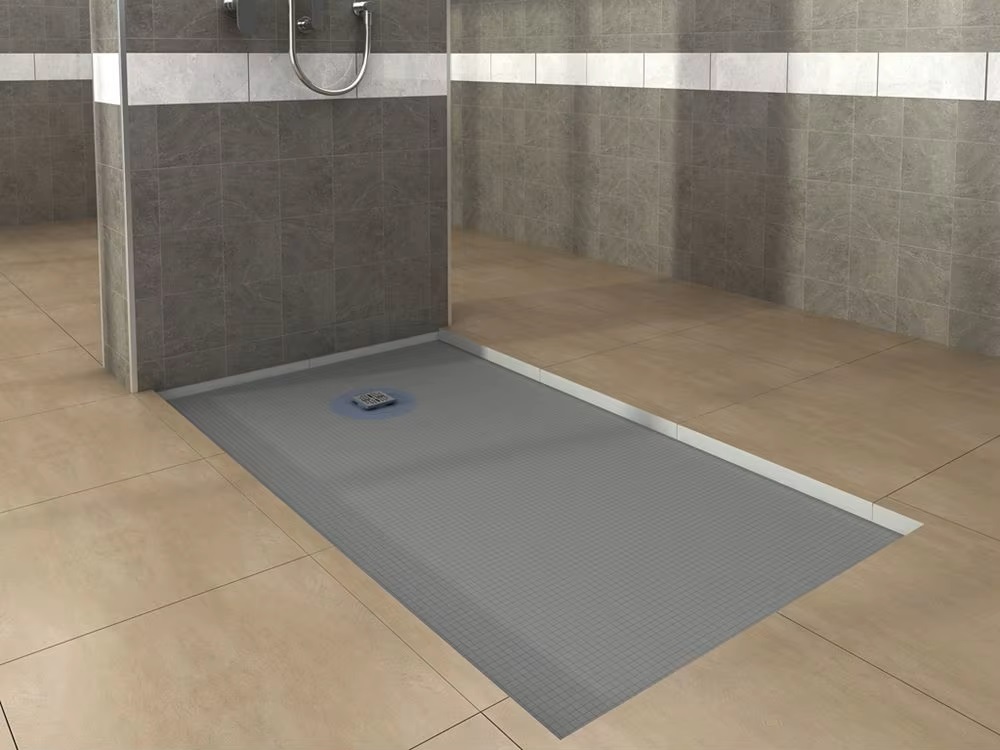

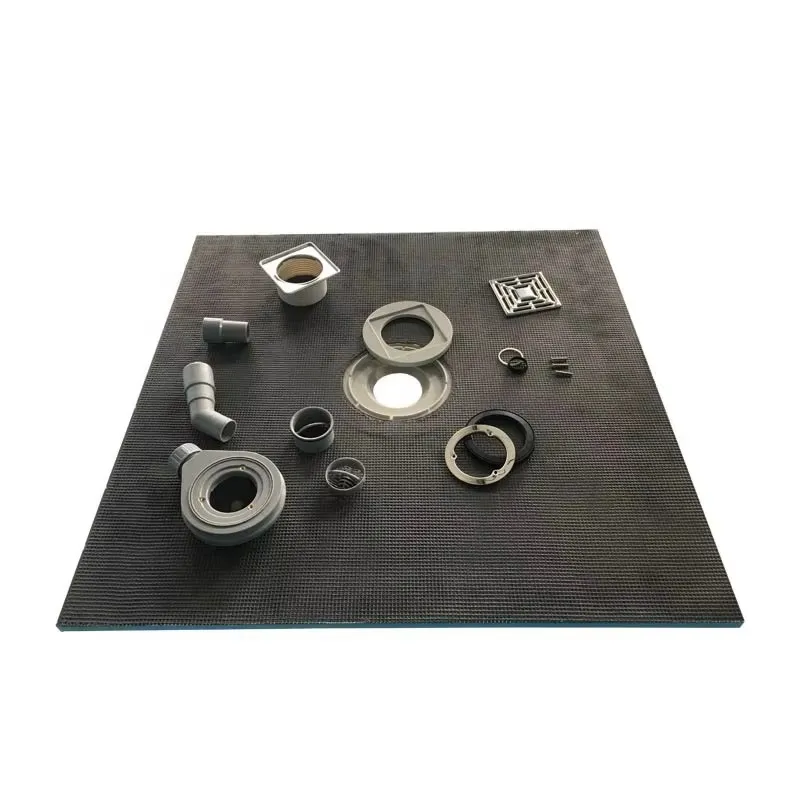

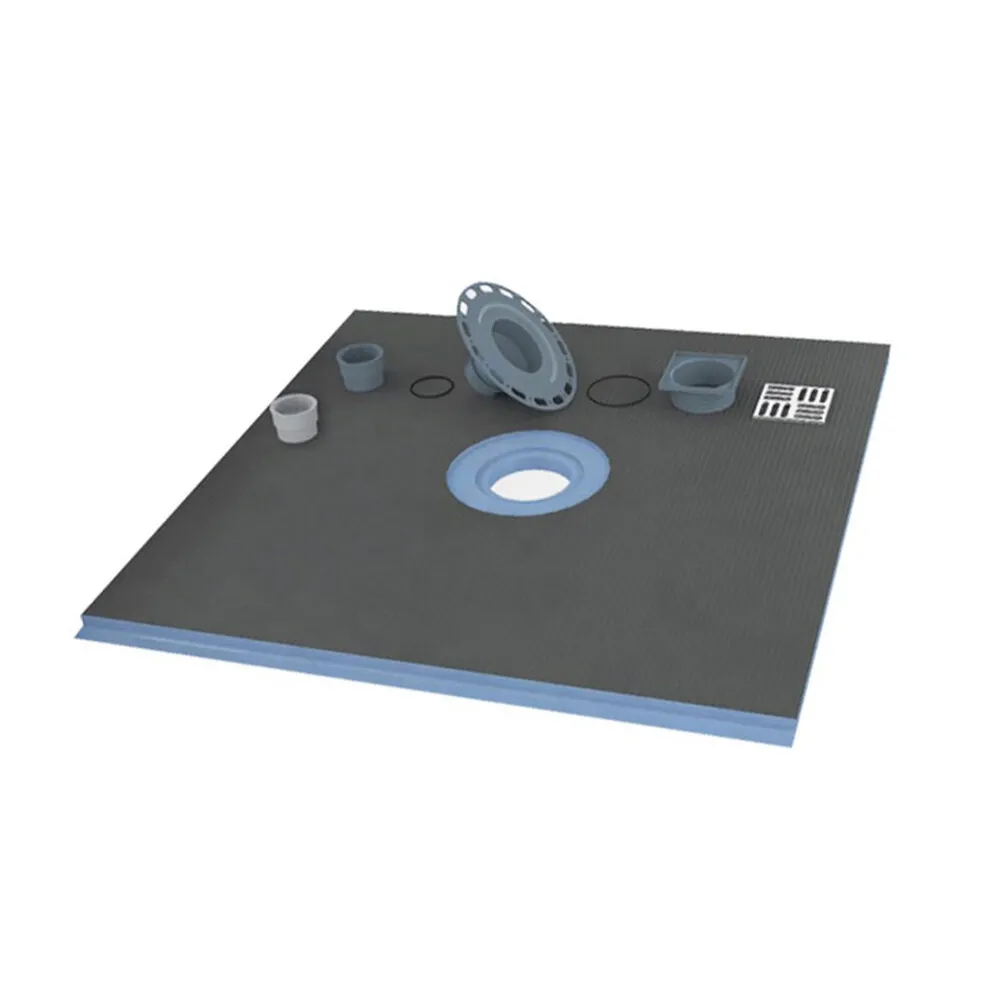

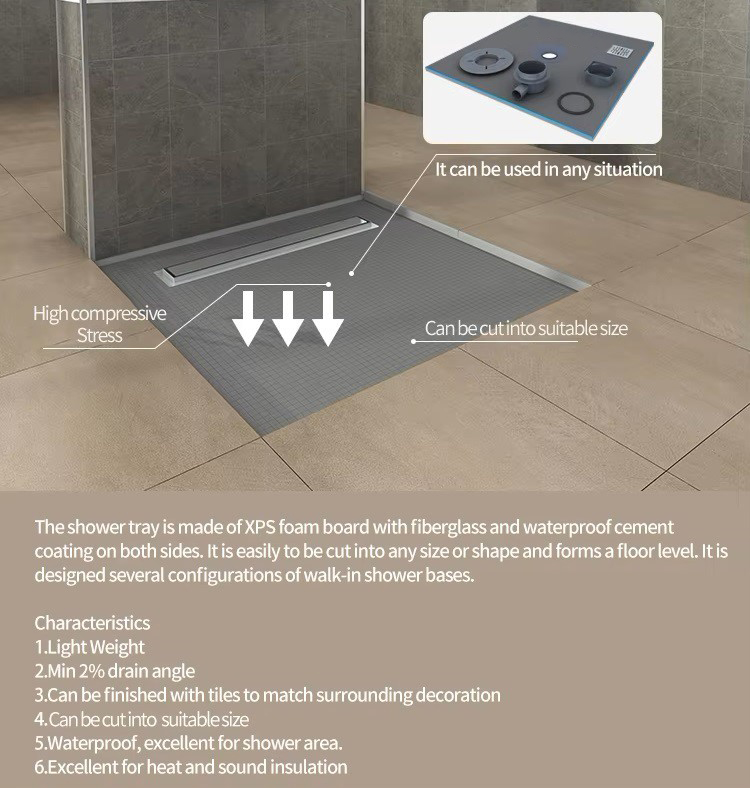

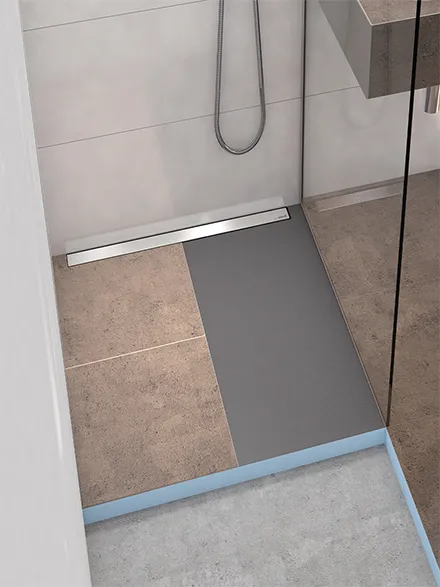

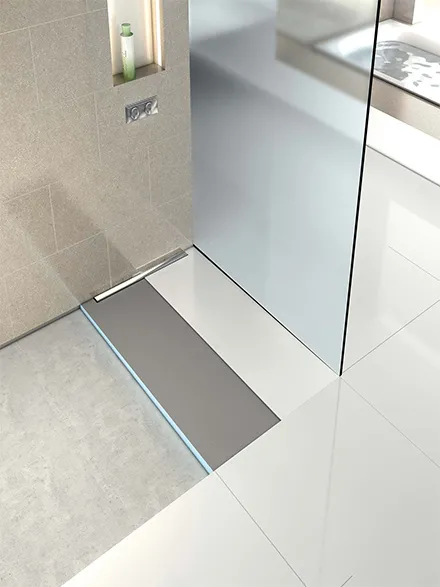

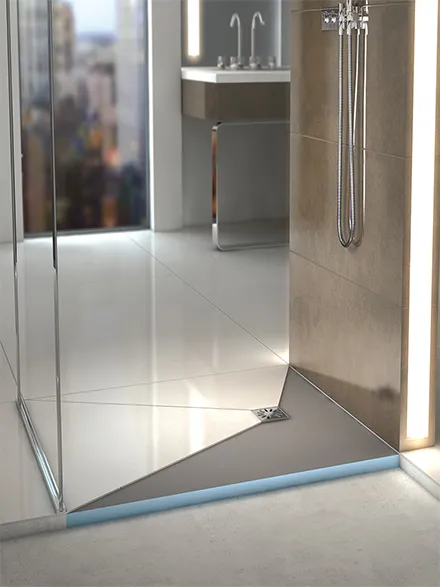

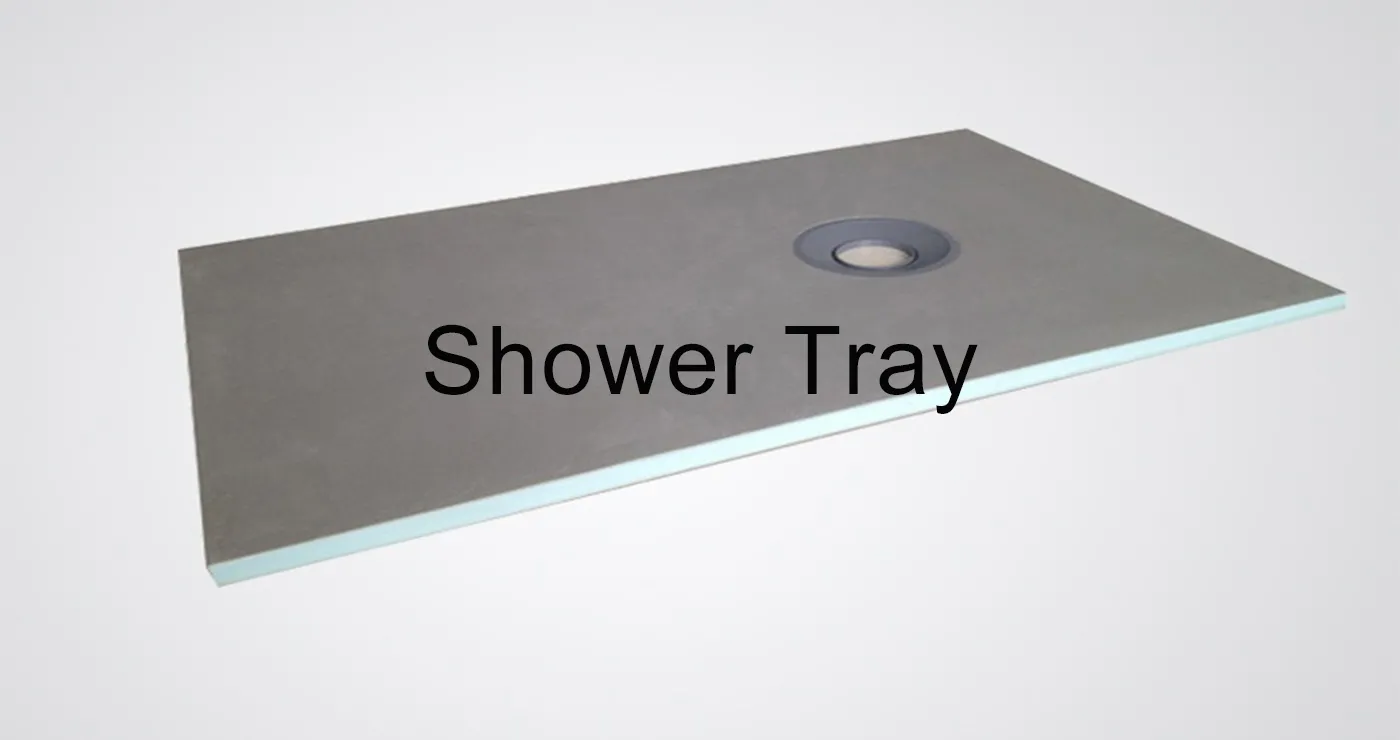

Wetroom shower tray is a low-cost, easy-to-install waterproof base for domestic wet room designs, suitable for fixing to wood and concrete floors.
Products Description

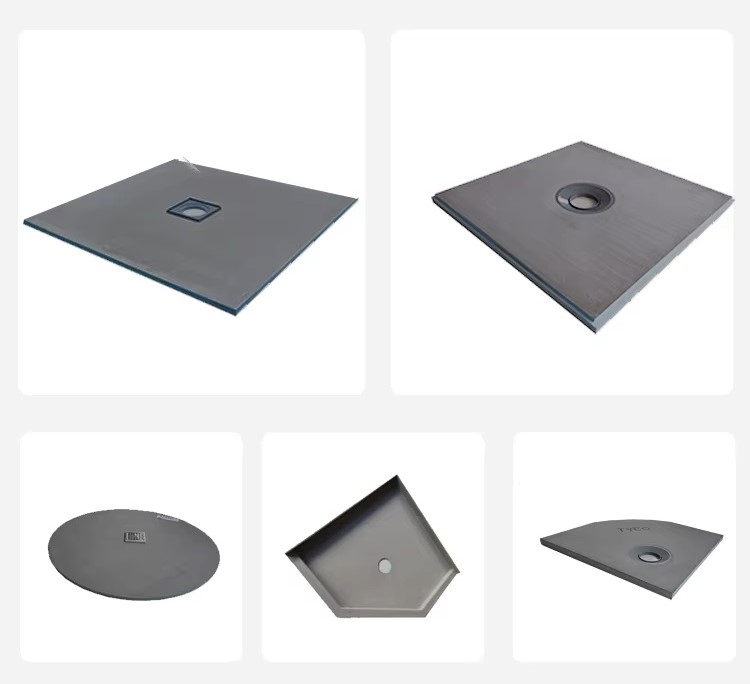

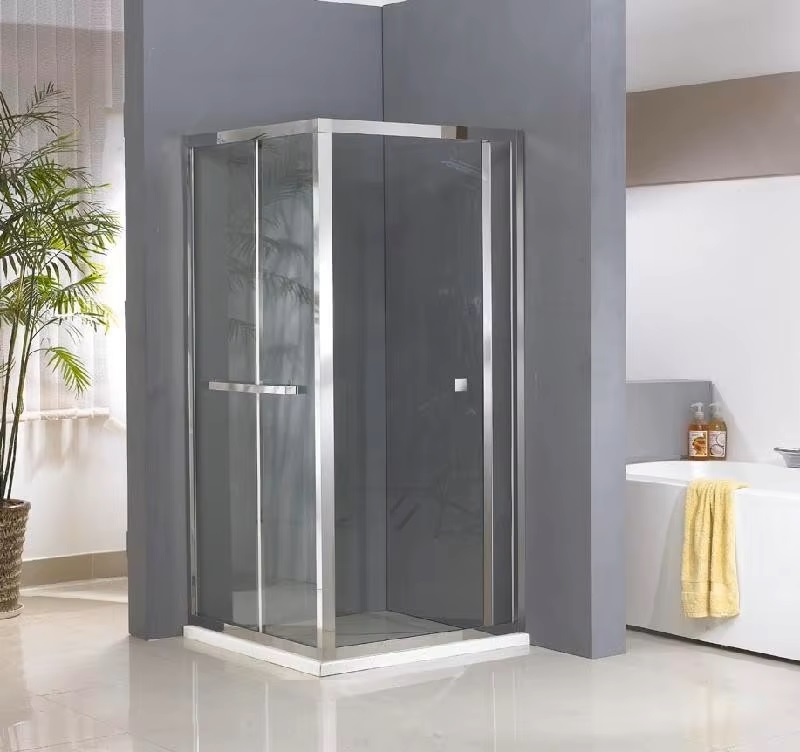

Shower trays provide a solid base for your shower enclosure, helping to direct water flow and prevent leaks. Choosing the right tray for your shower is important for both function and style, ensuring your shower remains functional and complements the rest of your bathroom design.
01
Heat insulation
This material also has excellent thermal insulation effect, which helps improve the energy efficiency of the building and reduce energy consumption.
02
Waterproof

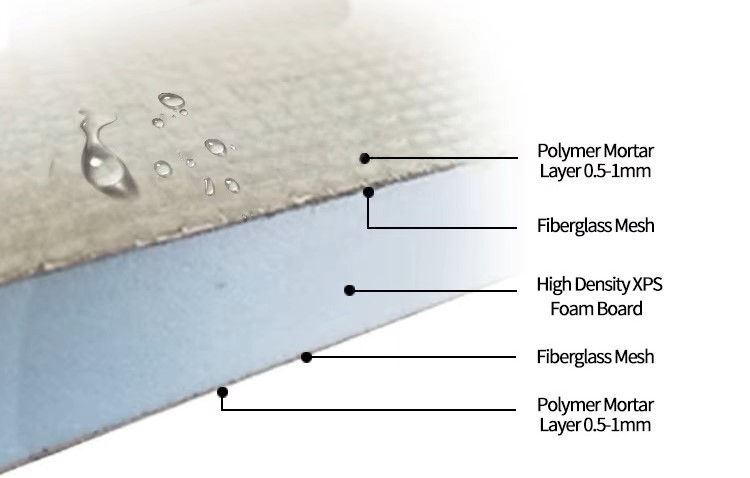

XPS backer board has a certain waterproof performance, which can protect the building from eroding from water.
03
Sound insulation
XPS backer board also has a certain sound insulation effect, which can reduce the transmission of noise.
04
Convenient construction
It is easy to build and carry, the installation process is fast and simple, and the construction efficiency is improved
05
Sound insulation and noise reduction
Tile backer board has excellent sound insulation performance, with a noise reduction of up to 21 decibels.
06
Safety and environmental protection
Applicable environmentally friendly materials, 0 formaldehyde
Products Video
Technical Data
| Propery | Standard | Value |
| XPS Foam Density | DIN 53420 | 33±1kg/m³ |
| Thermal Conductivity | EN 12167 | 0.033W/m.k |
| Compressive Strength(10% deflection) | EN 826 | 400kpa(30 tonnes/m²) |
| Flexural Strength | ASTM C203 | 0.030±0.02Mpa |
| Water Absorption(2-day immersion) | ISO 2896 | 0.2% by volume |
| Water Absorption(Capillary) | DIN 53428 | Zero |
| Water Vapour Permeability(μ) | DIN 52615 | 110-225μ |
| Water Vapour Permeability | ASTM E-96 | 0.028ng/Pa.m.s |
| Maximum Tile Loading Weight | CERAM 121107 | 62kg/m² |
| Flammability | EN 13501-1 | Class E |
| Impact Sound Reduction | EN 824 | dLw=21 |
| EU Controlled Substances | N/A | none |
About Us
Qingdao ZCxps lmport and Export Co.,Ltd. is a comprehensive enterprise specializing in building energy saving and environmental protection insulation materials. The main products of the company are XPS insulation board, Tile backer board,Underfloor heating board, Rock wool,etc. The company has strong technical force, advanced production equipment and scientific and perfect quality assurance system, is involved in the integration of new building engineering materials insulation structure, green integrated assembly and decoration engineering and other fields of the backbone enterprises, is a research and development, production, sales, service in one of the modern company.
Certificate
Qingdao ZCxps lmport and Export Co.,Ltd. has passed CE certification, ERP certification, CUPC certification and SGS certification, etc. In terms of company management, ZCxps adopts ERP management system to fully control business processes such as production, procurement, sales and finance, and achieve excellent economic benefits.

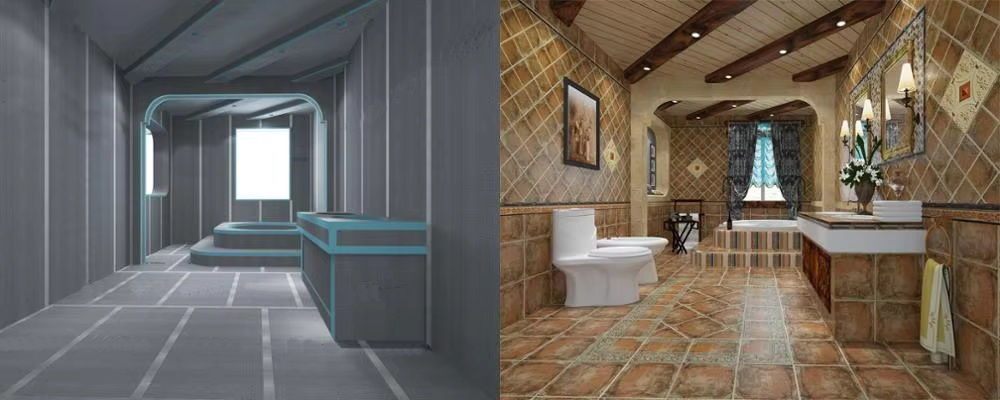

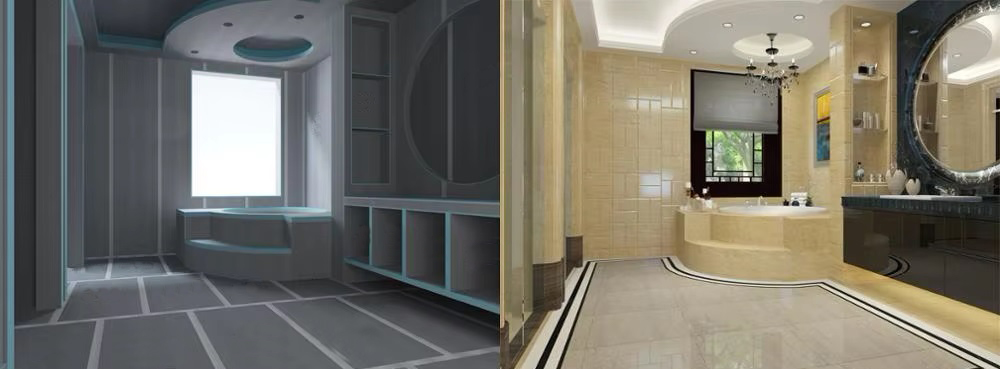

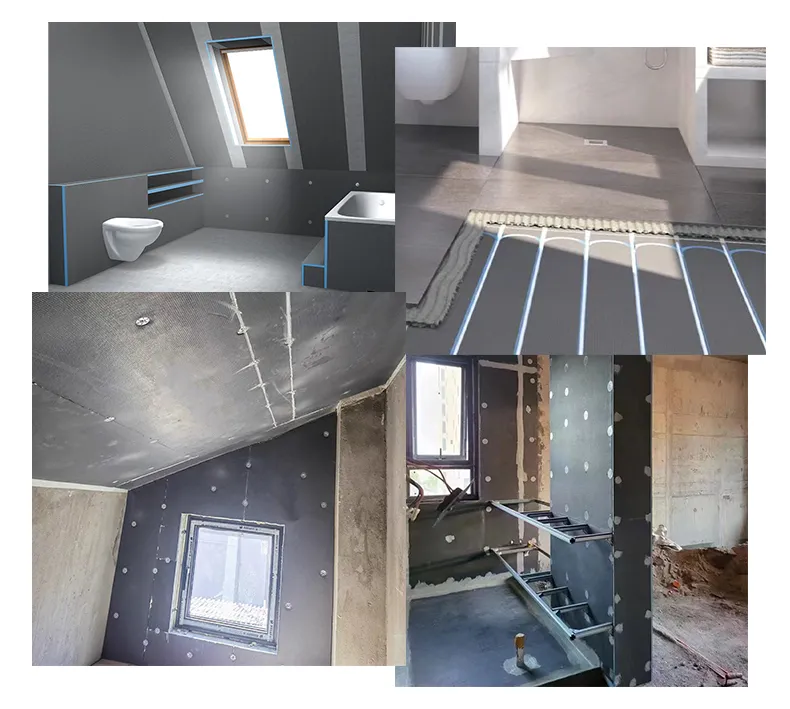

Application Scenario
Exhibition

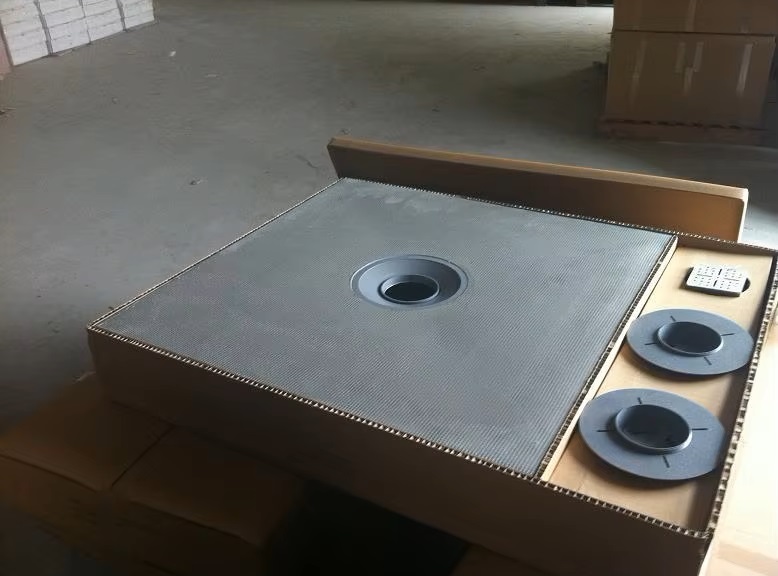

Packaging Shipping
