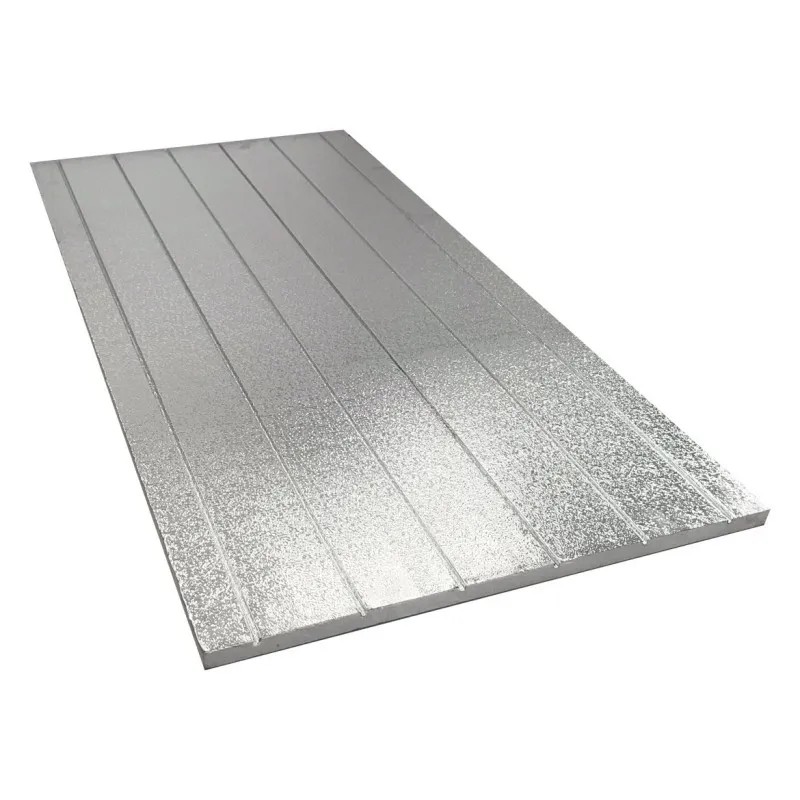

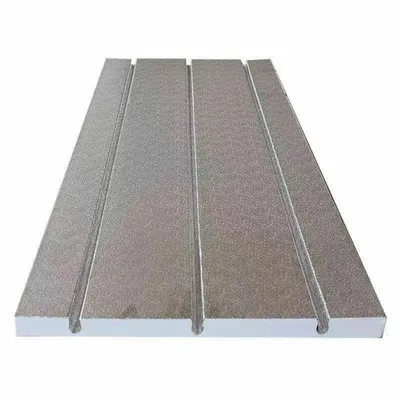

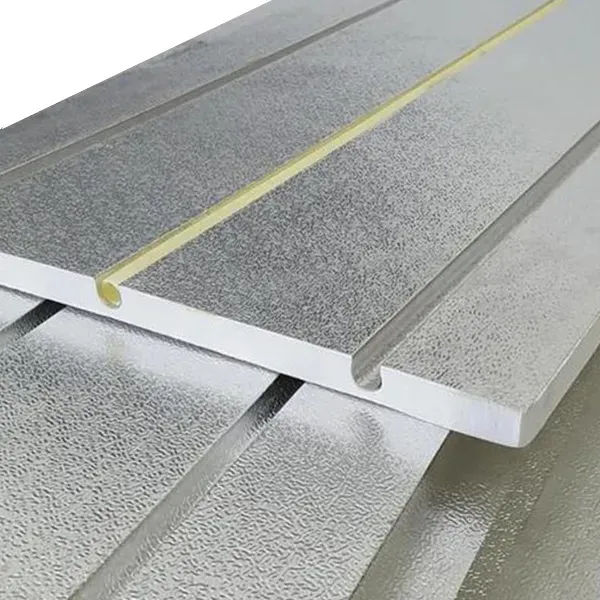

Made of XPS board and embossed aluminum foil, providing strong durability and a sleek, modern look.
·Uniform heat dissipation
·Thermal insulation
·High strength compression
Products Description

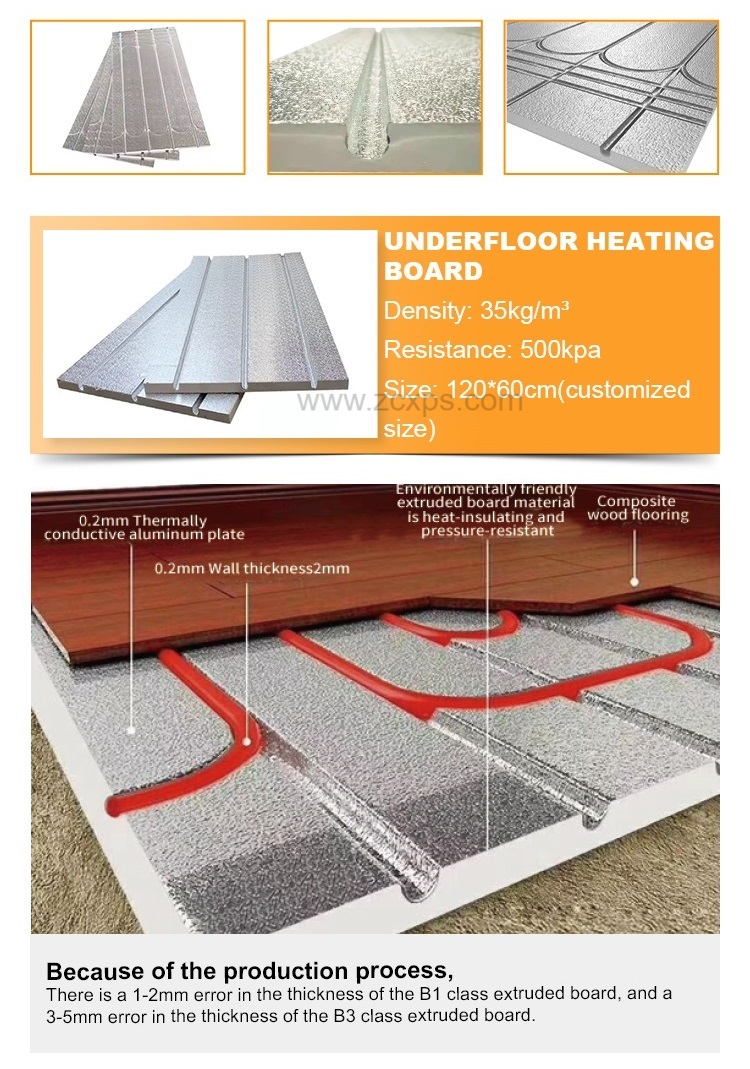

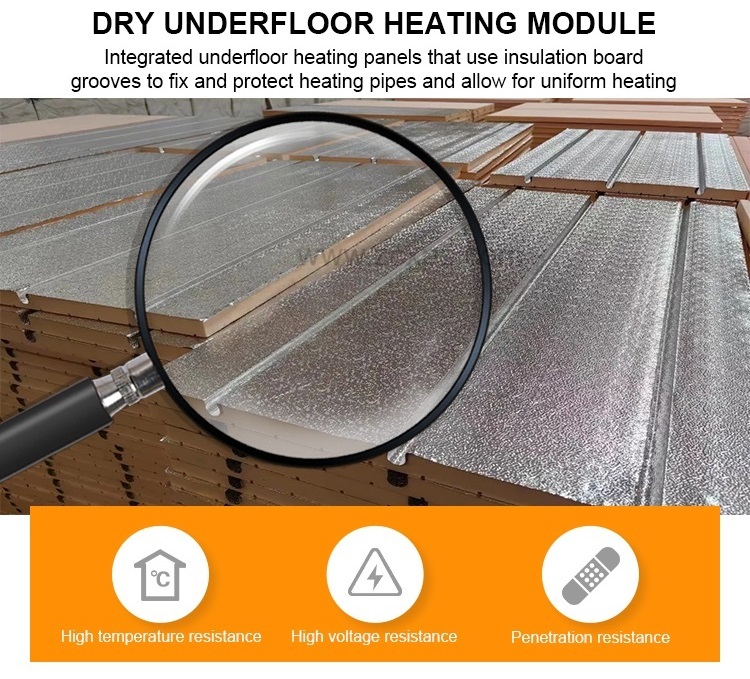

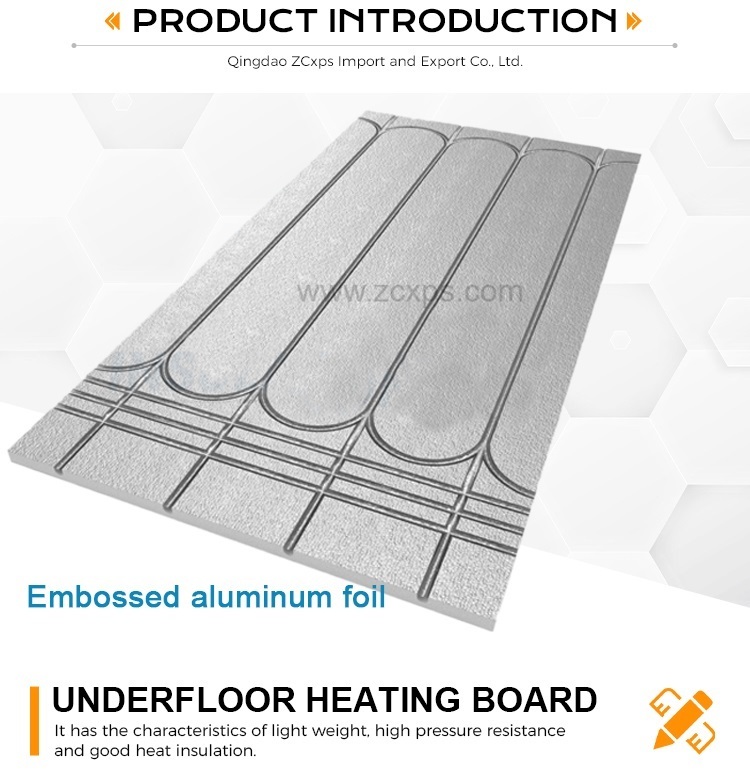

Underfloor heating panel is made of XPS board and embossed aluminum foil, providing strong durability and a sleek, modern look. It use embedded extruded floor radiant under-panel technology, which dissipates heat evenly and ensures that your floor remains warm and comfortable for a long time. Allows for installation flexibility and can be easily adapted to your specific heating needs.
01
Environmental protection and energy conservation
Compared to traditional heating products, it saves about 10% energy. and all raw materials are environmentally friendly and energy-saving products.
02
Uniform heat dissipation
Uniformly distributed on the ground, utilizing the characteristics of human body temperature, with low air flow.
03
Fire and flame retardant
Cement and sand are the main raw materials, completely non combustible, and there is no fire hazard.
04
Efficient sound insulation
Expanded insulation layer with excellent sound insulation results, low noise pollution, and no noise during heating process.
05
Slot design
The floor heating pipe is inserted into the U-shaped groove to make it integrated, so that the pipe is evenly stressed and the water flow is unobstructed.
06
Standard thickness
The standard thickness of this product is 30 mm. Many merchants cut corners and fail to achieve sufficient thickness.
Application Scenario
Underfloor heating for wooden
Underfloor heating for tile
Underfloor heating for carpet
Specifications
| Project | Unit | Parameter | |
| Density | Kg/m | 32-68 | |
| Thermal Conductivity,90 Days,10℃ | W/(m*k) | 0.027-0.030 | |
| Compressive Strength | Kpa | 300-1200 | |
| Tensile Strength | Kpa | ≥350 | |
| Water Absorption | Val-% | ≤1 | |
| Temperature Limits | ℃ | -50℃，+75℃ | |
Size | Length | mm | 1200 |
| Width | mm | 600 | |
| Thickness | mm | 20/25/30/35/customize | |
| Flame Retardant | B1 | ||
| Color | White/Blue | ||
CONTACT
Request A Quote or More Information?
Simply fill out the application form and tell us what you need for a custom solution. We will get back to you as soon as possible.
Custom Battery RequestREATED PRODUCTS

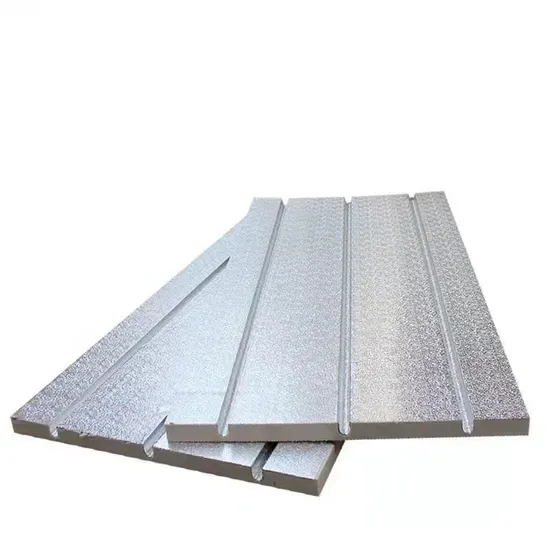

Smooth Aluminum Foil Underfloor Heating Panel
