Made of highly compressible XPS or EPS insulation boards, covered aluminum foil laminated together.
·Uniform heat dissipation
·Thermal insulation
·High strength compression
Products Description

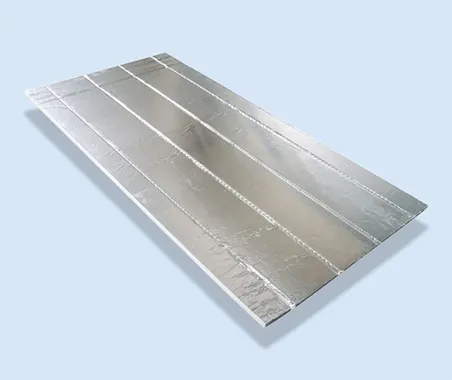

Uderfloor Heating Panel is made of high compressive XPS boards grooved in straight and curved ends for flexible piping. The boards are laminated with 0.1mm aluminum foil which have perfect thermal conductivity to diffuse heat evenly and upward which can warm your floor in 30 minutes, much faster than traditional wet floor heating and max energy- saving.Moreover, it is lightweight and easy installation, idea use for renovation and new house. It also can be used immediately after installation which doesn’t need to wait 21 days for screed drying.
01
Environmental protection and energy conservation
Compared to traditional heating products, it saves about 10% energy. and all raw materials are environmentally friendly and energy-saving products.
02

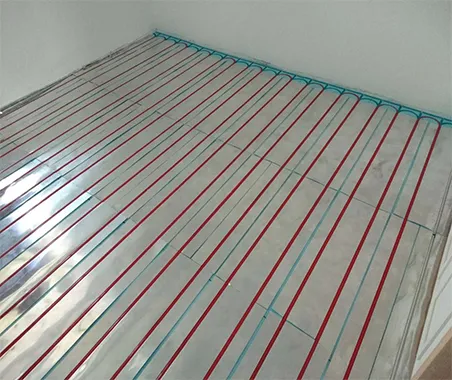

Uniform heat dissipation
Uniformly distributed on the ground, utilizing the characteristics of human body temperature, with low air flow.
03

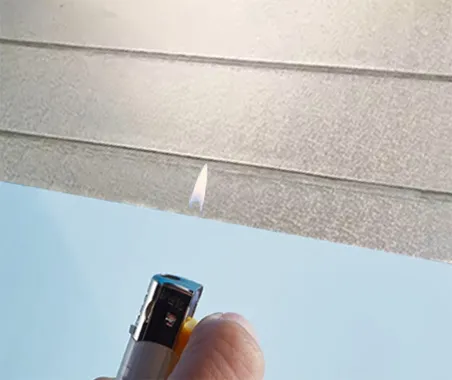

Fire and flame retardant
Cement and sand are the main raw materials, completely non combustible, and there is no fire hazard.
04

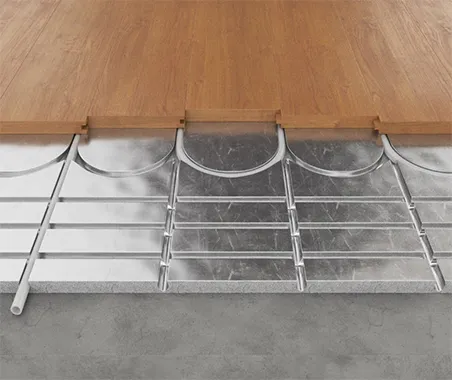

Efficient sound insulation
Expanded insulation layer with excellent sound insulation results, low noise pollution, and no noise during heating process.
05
Slot design
The floor heating pipe is inserted into the U-shaped groove to make it integrated, so that the pipe is evenly stressed and the water flow is unobstructed.
06
Standard thickness
The standard thickness of this product is 30 mm. Many merchants cut corners and fail to achieve sufficient thickness.
Products Video
Size Chart
| Product | Apartment |
| Length | 1200mm |
| Width | 600mm |
| Thickness | 20/25/30/35mm/customized |
| Pipe Distance | 100/150/200mm |
| Pipe OD | 16/20mm |
| Embossed Aluminum Foil Thickness | 0.1/0.2mm |
Technical Data
| Propery | Standard | Value |
| XPS Foam Density | EN 1602 | 25-68kg/m³ |
| Thermal Conductivity | EN 13164 | 0.027-0.030W/m.k |
| Compressive Strength(10% deflection) | EN 826 | 300kpa-1200kpa |
| Tensile Strength | EN 1607 | ＞600kpa |
| Water Absorption By Total Immersion | EN 12087 | ≤5% |
| Temperature Limits | -50℃,+75℃ | |
| Compressive Modulus | EN 826 | 10-45N/mm² |
| sD-value | EN 12086 | 3-16m |
| Coefficient Of Linear Thermal Expansion | 0.07mm/m.k | |
| Fire Protection | EN 13501-1 | Class E |
| Rectangularity | EN 824 | ≤5mm/m |
Product Advantages
01
Environmental protection and energy conservation
Compared to traditional heating products, it saves about 10% energy, and all raw materials are environmentally friendly and energy-saving products.
02
Uniform heat dissipation
Uniformly distributed on the ground, utilizing the characteristics of human body temperature, with low air flow.
03
Fire and flame retardant
Cement and sand are the main raw materials, completely non combustible, and there is no fire hazard.
04
Efficient sound insulation
Expanded insulation layer with excellent sound insulation results, low noise pollution, and no noise during heating process.

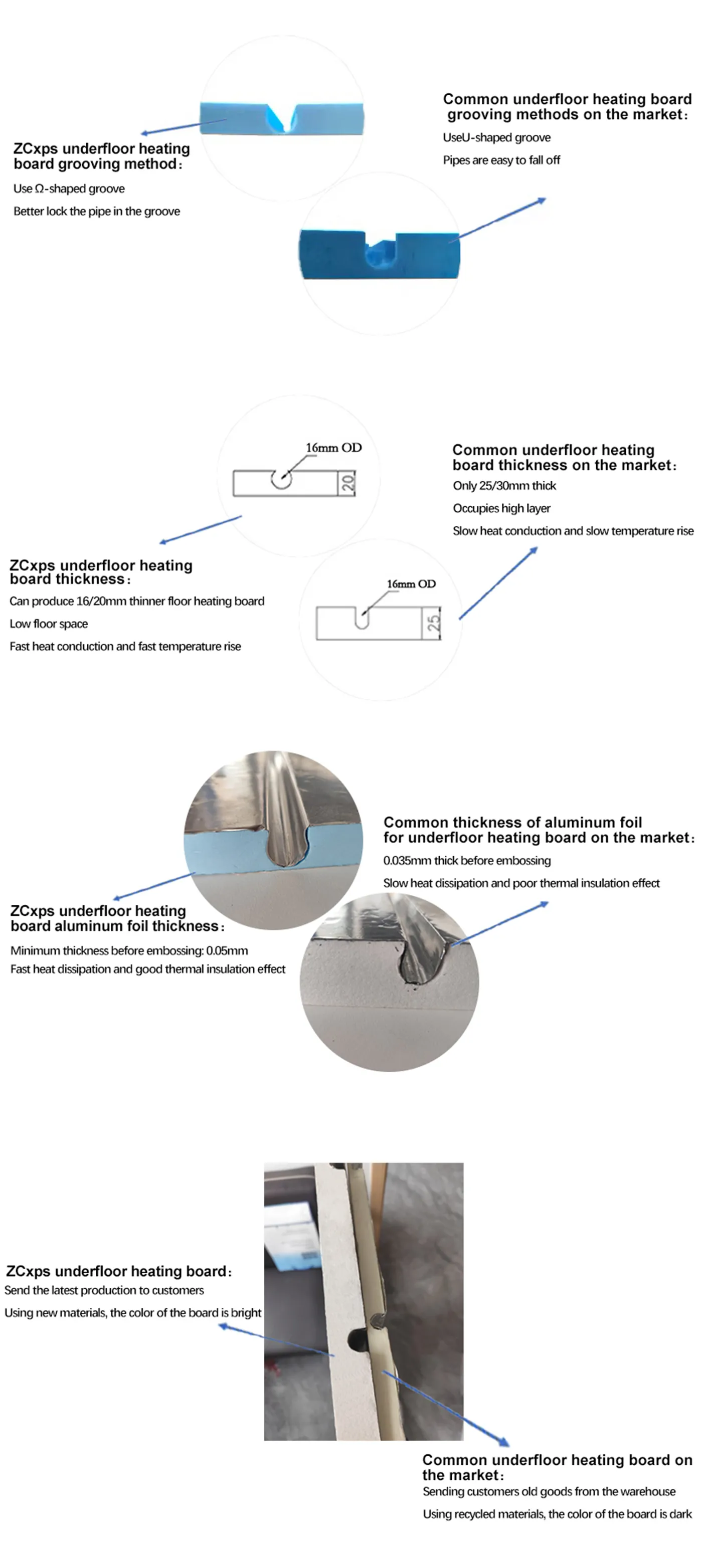

Quality comparison
About Us
Qingdao ZCxps lmport and Export Co.,Ltd. is a comprehensive enterprise specializing in building energy saving and environmental protection insulation materials. The main products of the company are XPS insulation board, Tile backer board,Underfloor heating board,etc. The company has strong technical force, advanced production equipment and scientific and perfect quality assurance system, is involved in the integration of new building engineering materials insulation structure, green integrated assembly and decoration engineering and other fields of the backbone enterprises, is a research and development, production, sales, service in one of the modern company.
Certificate
Qingdao ZCxps lmport and Export Co.,Ltd. has passed CE certification, ERP certification, CUPC certification and SGS certification, etc. In terms of company management, ZCxps adopts ERP management system to fully control business processes such as production, procurement, sales and finance, and achieve excellent economic benefits.

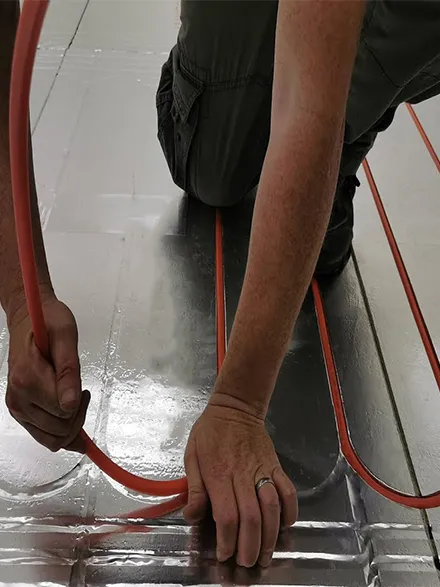

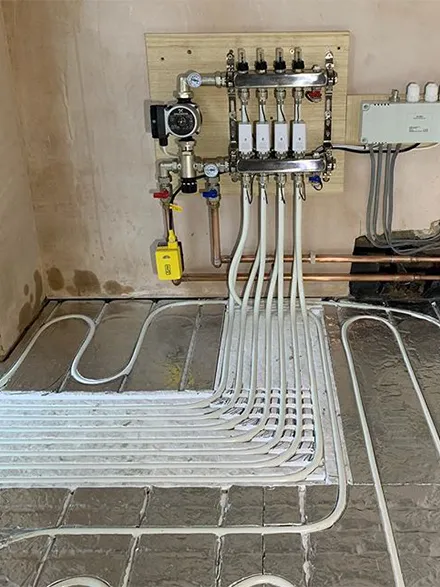

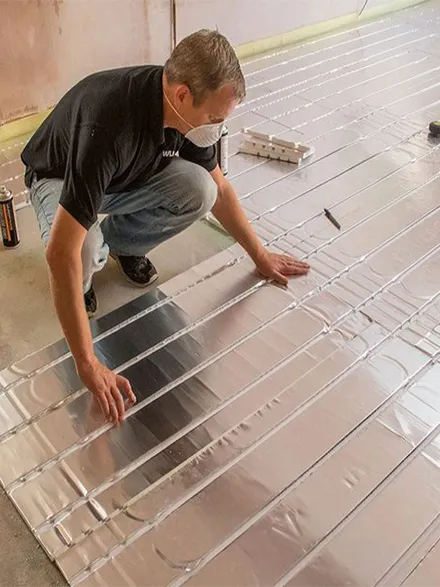

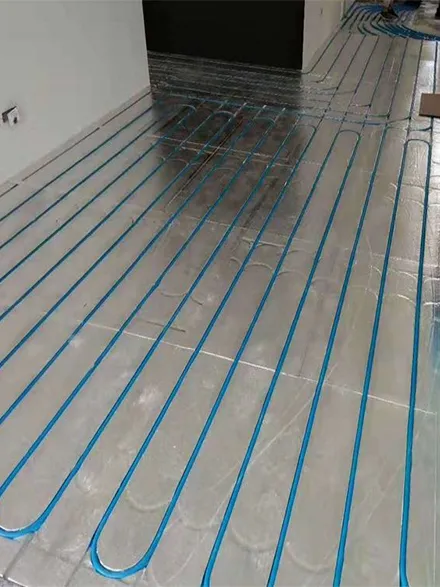

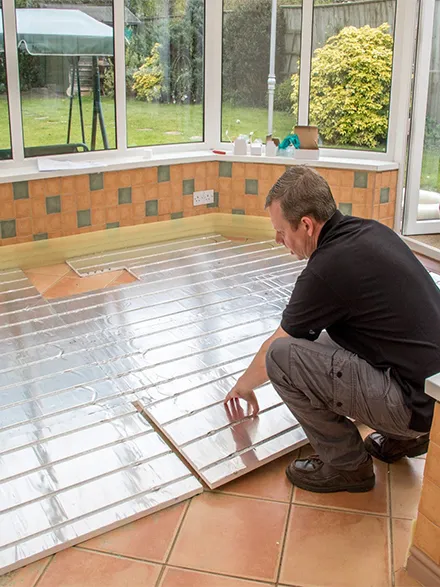

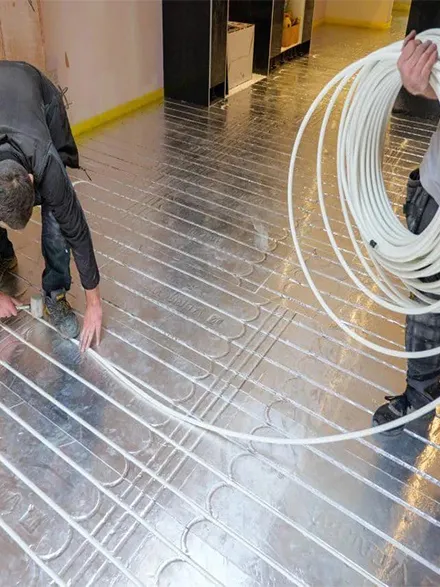

Application Scenario
Exhibition

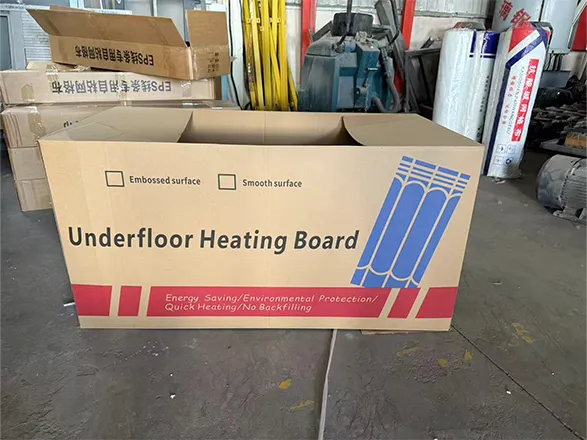

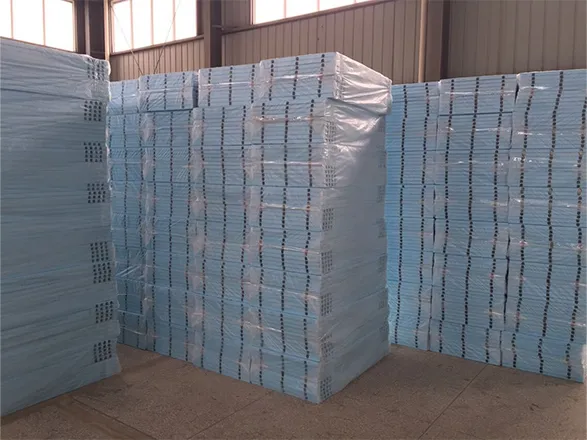

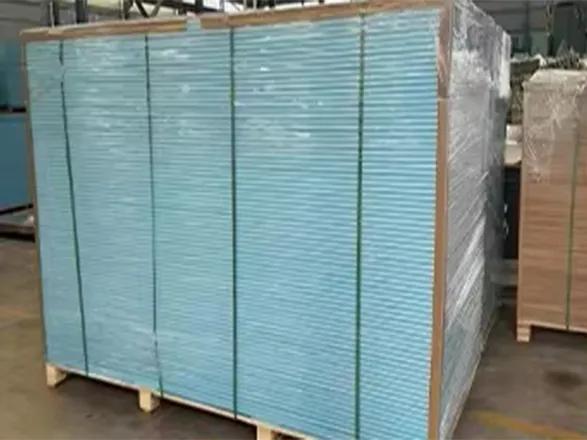

Packaging Shipping
