Manufactured by plastic extrusion process. The board is almost 100% closed-cell, strong, highly moisture-proof and easy to cut and shape.
Widely used as moisture-proof industrial material in wall insulation, low-temperature storage facilities.
Products Description

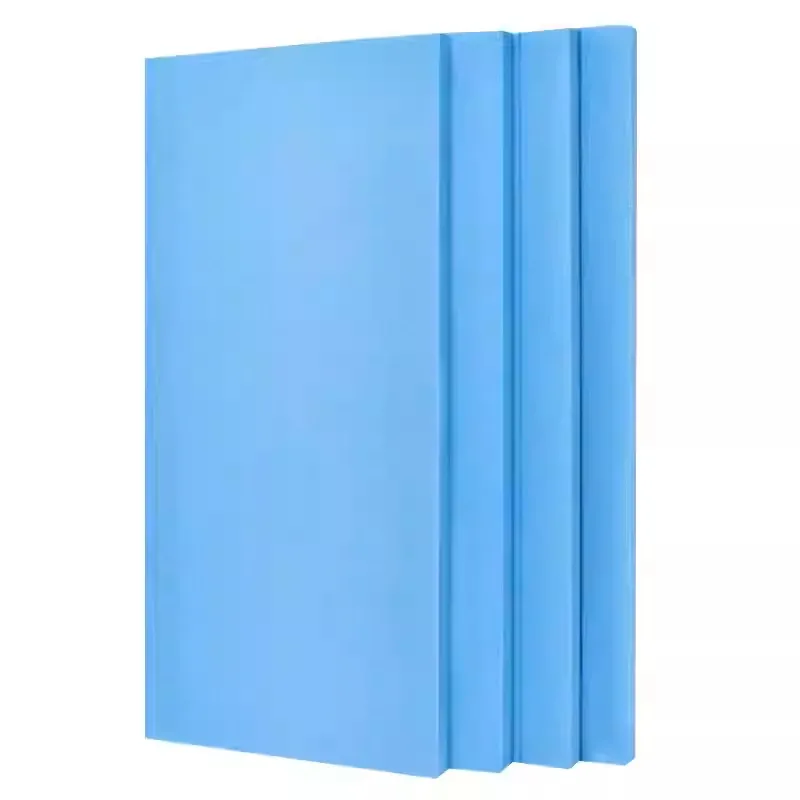

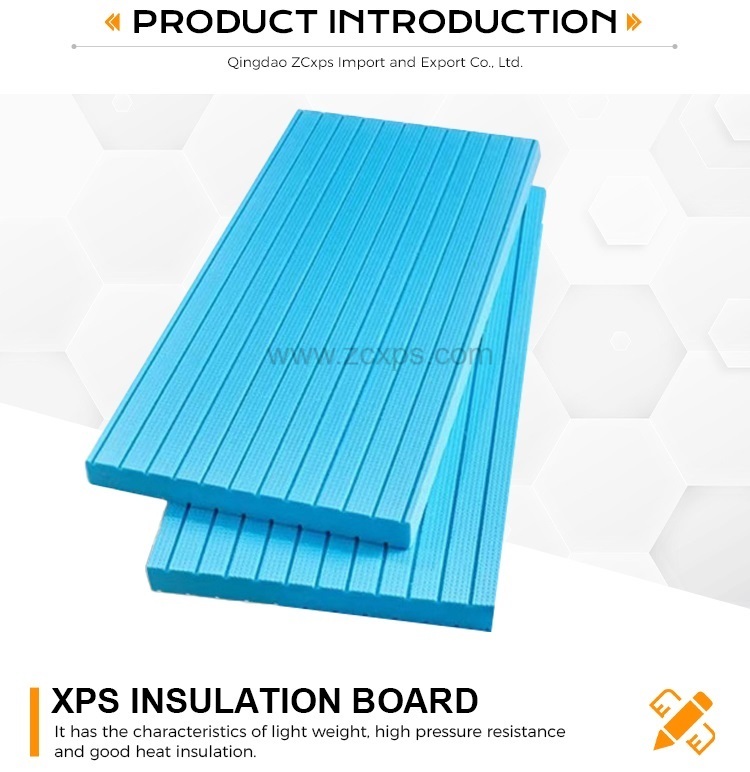

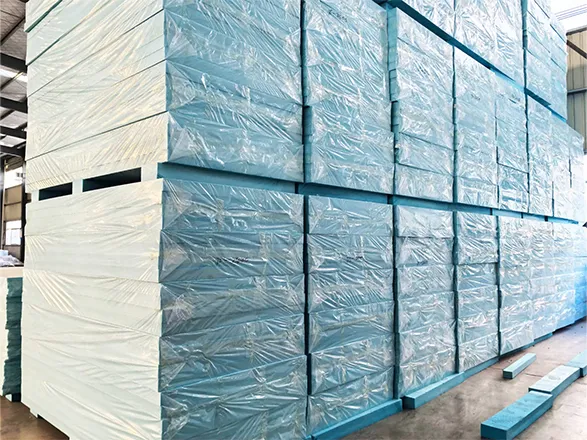

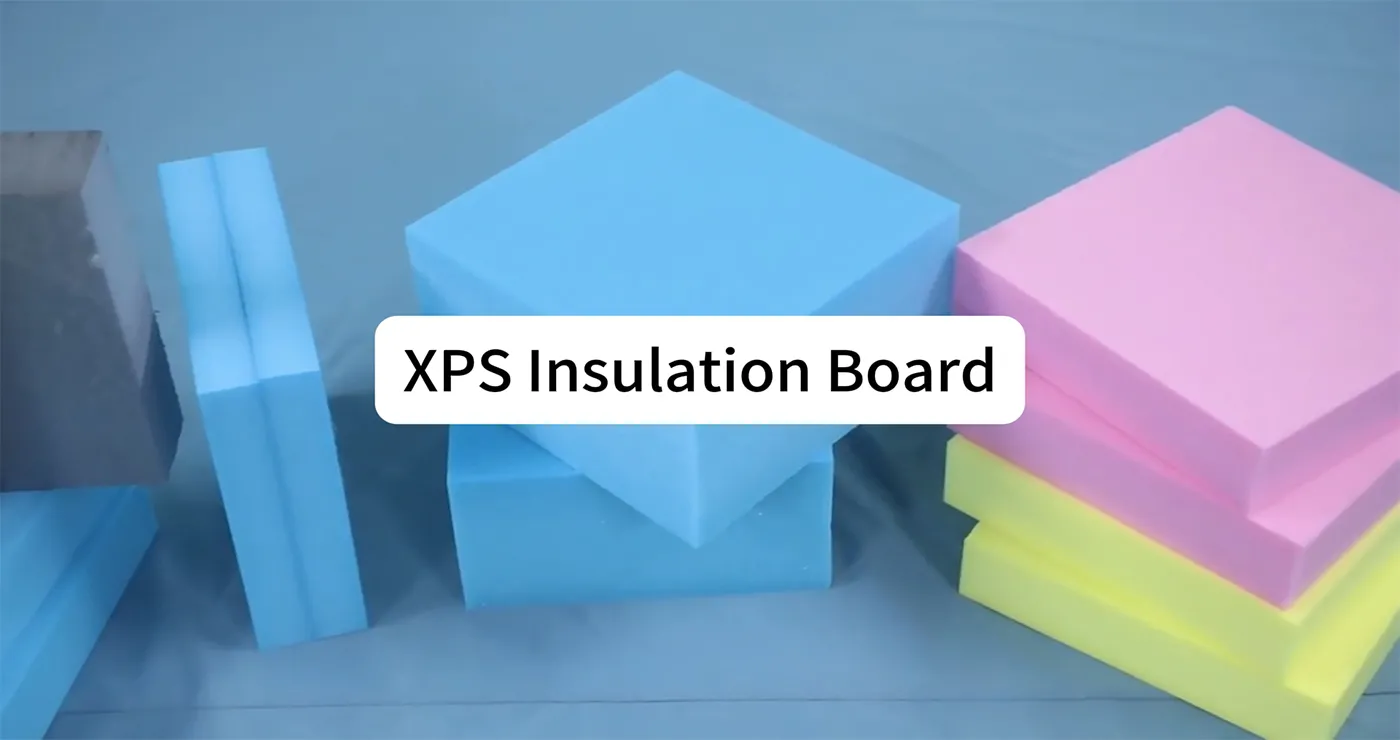

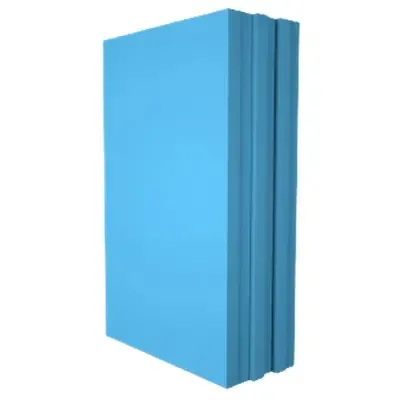

XPS insulation board is a kind of rigid extruded polystyrene thermal insulation material. It is made of polystyrene raw material and imported from Berstorff, Germany. Widely used in the production of tile backer board and underfloor heating board, etc.It is produced in strict accordance with the ISO quality management system control conditions through a special process of heating and extrusion molding. It is a high-performance rigid foam plastic with a honeycomb closed-cell structure. The interconnected walls of these honeycomb structures have a certain thickness and no gaps. Therefore, the uniform structure formed during the extrusion process gives the product excellent thermal insulation performance, good moisture resistance and high compressive resistance.

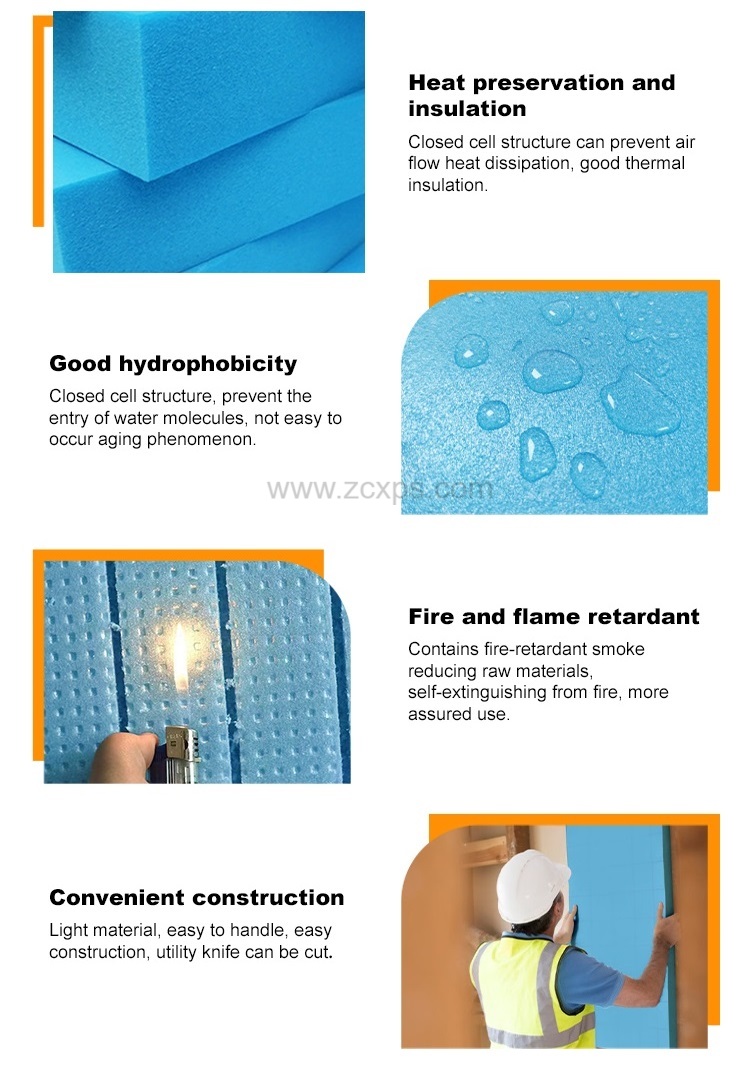

01

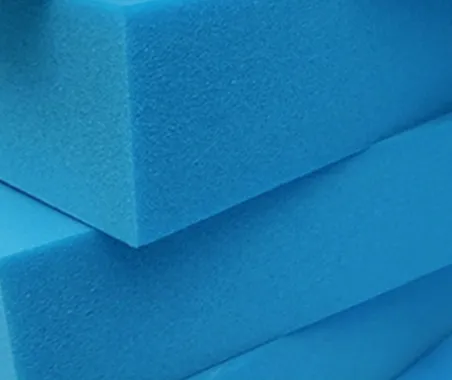

Heat preservation and insulation
Closed cell structure can prevent air flow heat dissipation, good thermal insulation
02

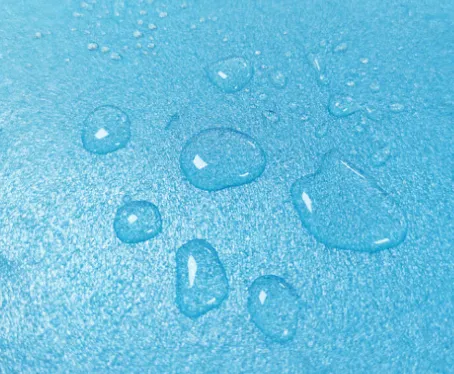

Good hydrophobicity
Closed cell structure, prevent the entry of water molecules, not easy to occur aging phenomenon
03

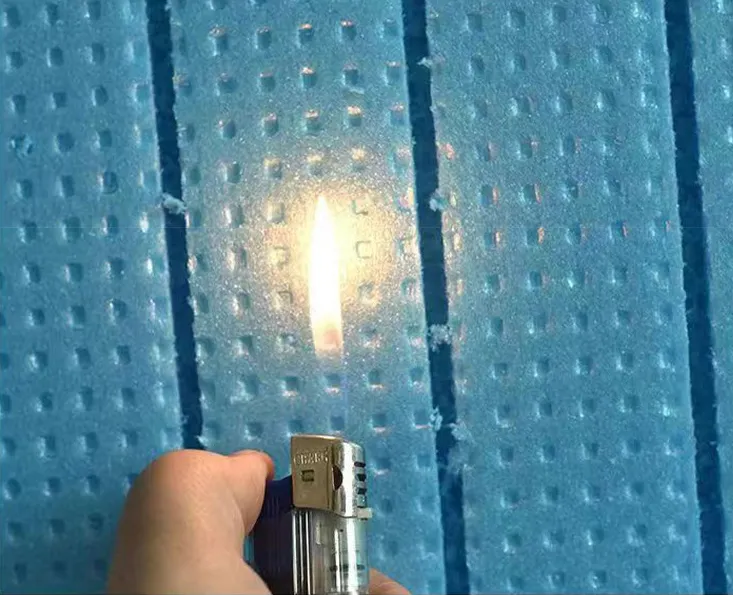

Fire and flame retardant
Contains fire-retardant smoke reducing raw materials, self-extinguishing from fire, more assured use
04

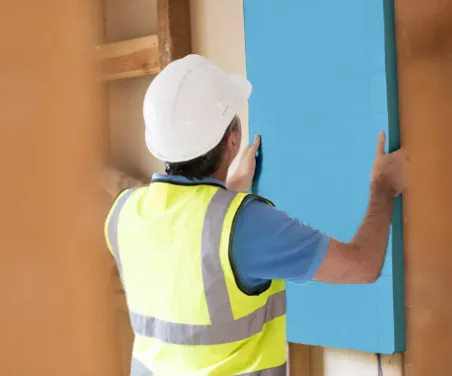

Convenient construction
Light material, easy to handle, easy construction, utility knife can be cut
05
Environmental Protection and Health
Polystyrene raw materials for production can be used in food packaging, truly achieving non-toxic, odorless, zero formaldehyde, and long service life that is not easily decomposed
06
High density compression resistance
Fully closed cell foaming technology Lightweight texture, high strength, high energy resistance to high-intensity impact

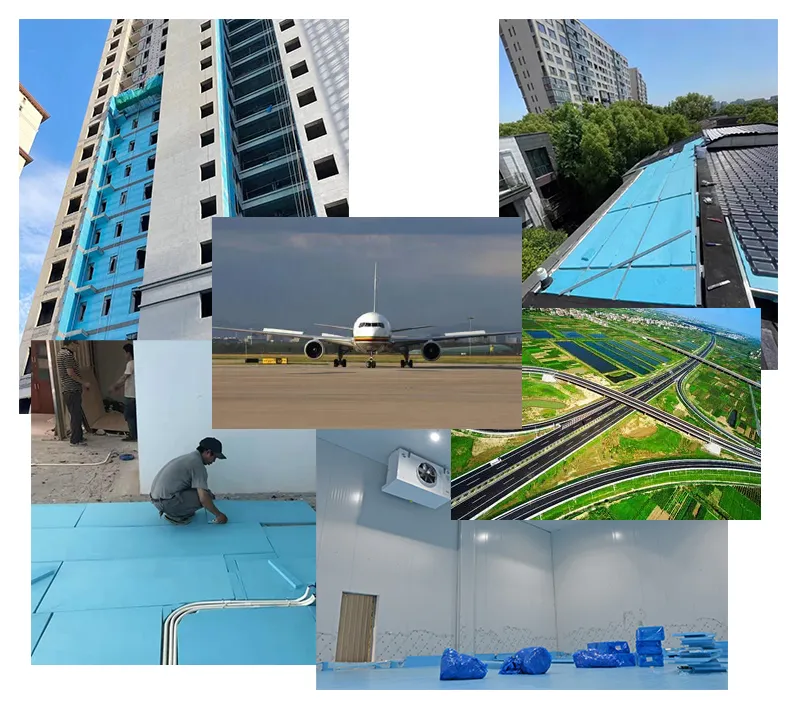

Application Scenario

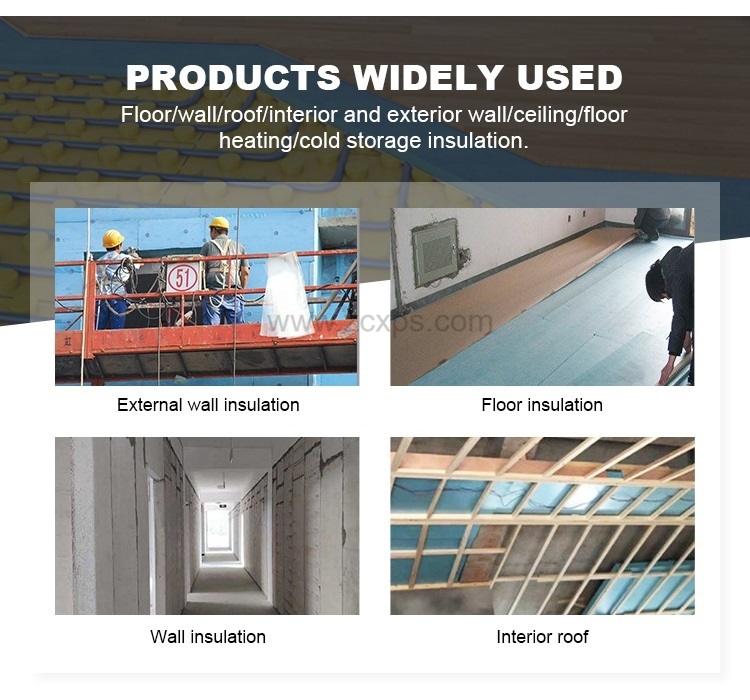

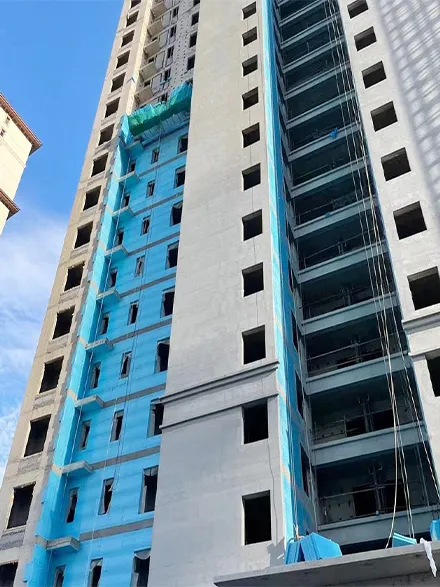

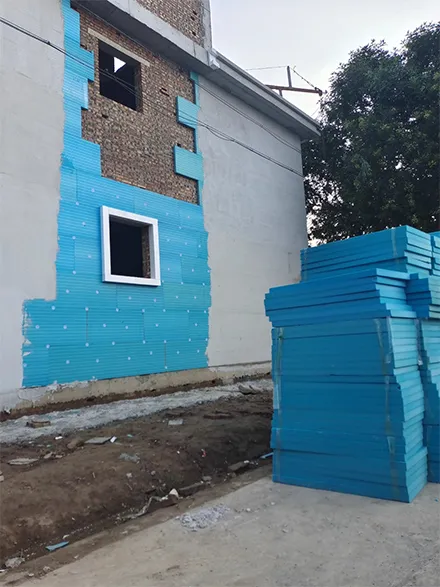

Building interior and exterior wall insulation

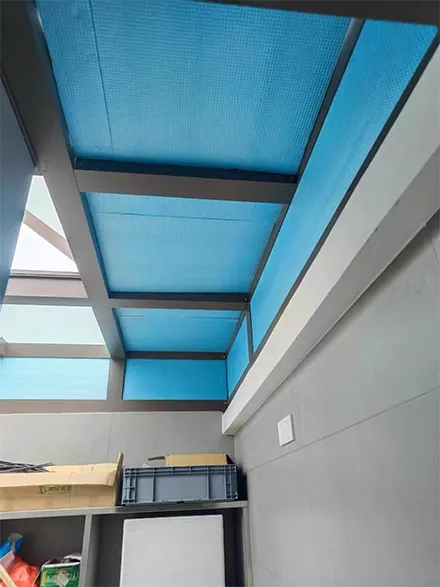

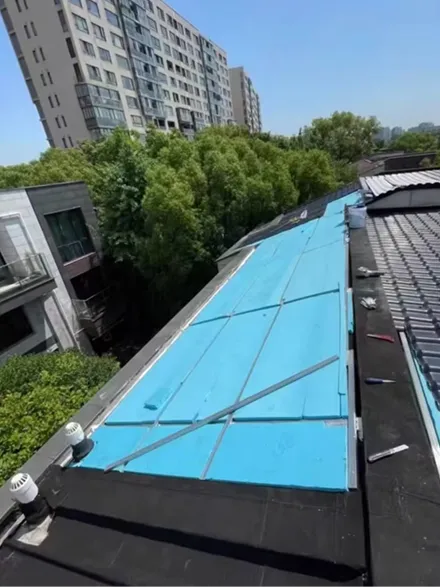

Roof and floor insulation

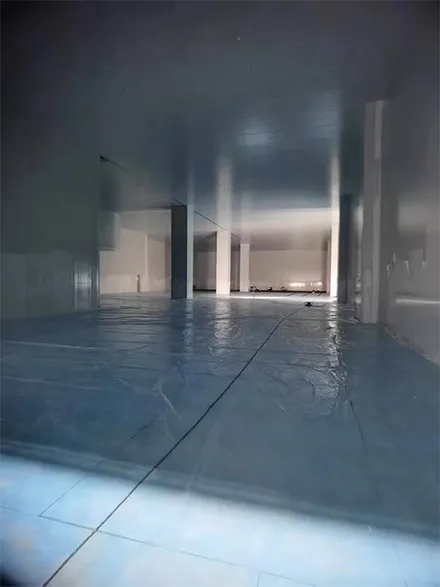

Cold storage and refrigerated truck insulation
Highway
Airstrip

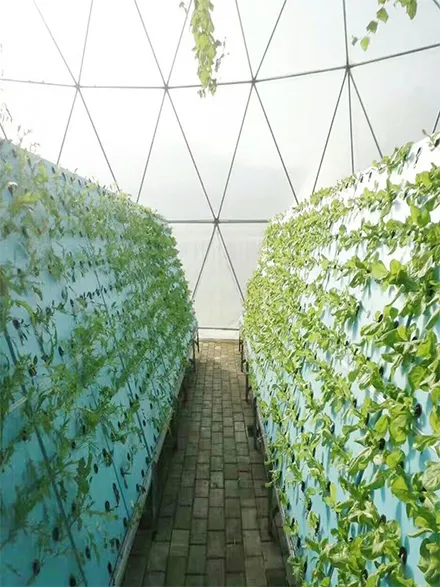

Hydroponic Plant Growth
Used for producing composite board
Used for producing underfloor heating board
Used for producing tile backer board
Specifications
| Project | Unit | Parameter | |
| Density | Kg/m | 25-45 | |
| Thermal Conductivity,90 Days,10℃ | W/(m*k) | 0.024-0.036 | |
| Compressiv Strength at 10% Deflectionor Yield,(Vertical) | Kpa | 200-1000 | |
| Tensile Strength | Kpa | ≥350 | |
| Water Absorption | Val-% | ≤1.00% | |
| Temperature Limits | ℃ | -50℃，+75℃ | |

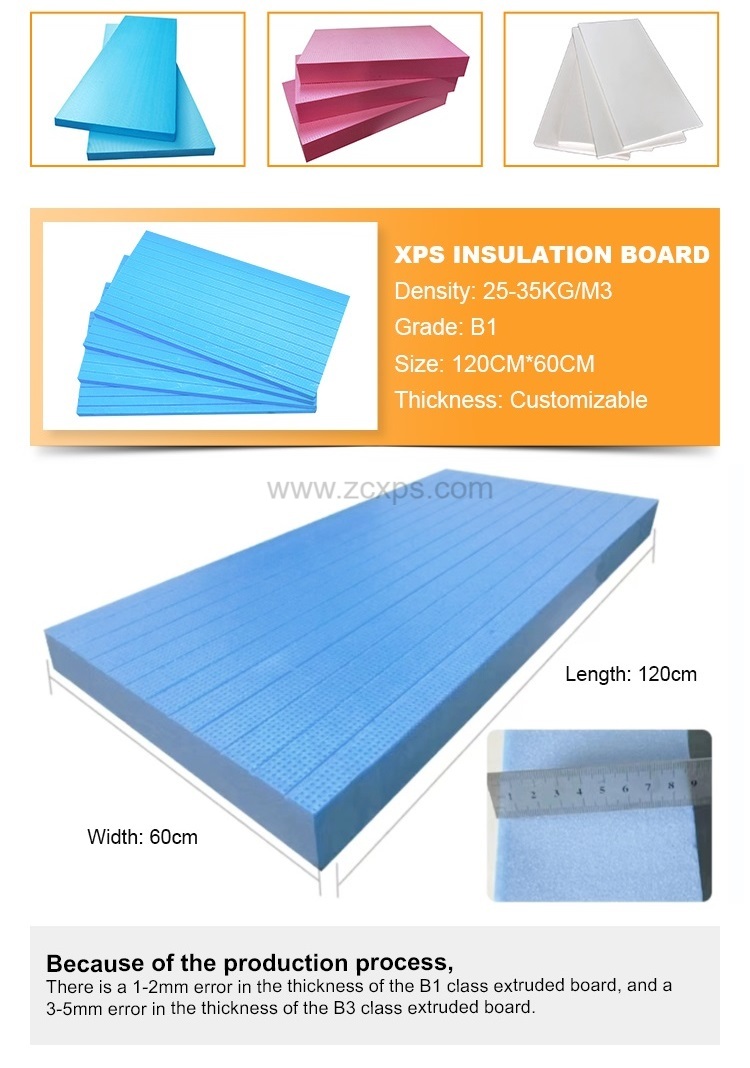

Size | Length | mm | 1200/1800/customize |
| Width | mm | 600/1200/customize | |
| Thickness | mm | 8-150 | |
| Flame Retardant | B1/B2/B3 | ||
| Surface | with or without skin | ||
| Color | Blue/yellow/pink/white | ||
