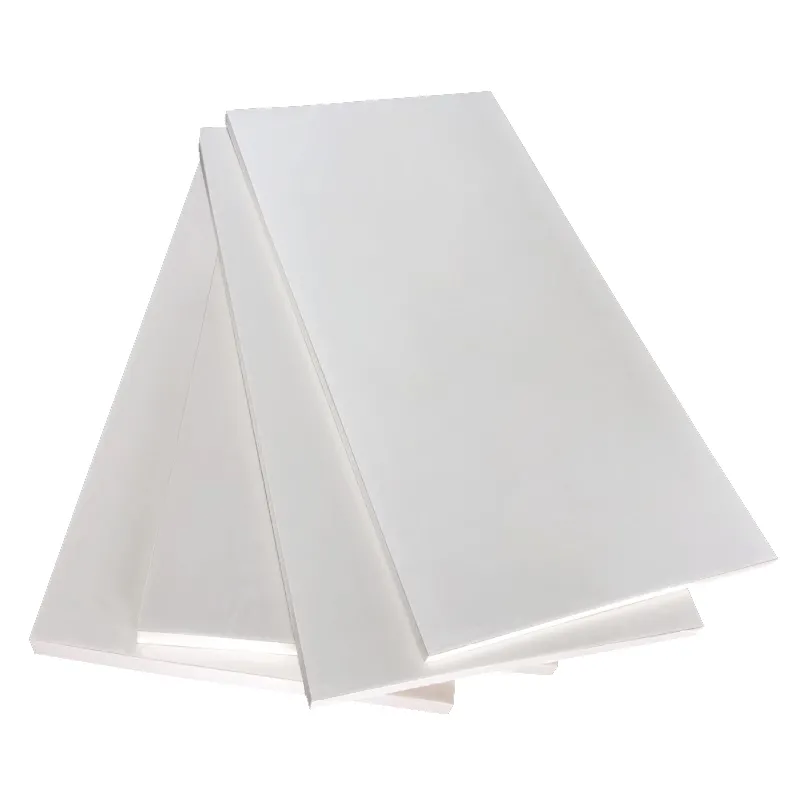

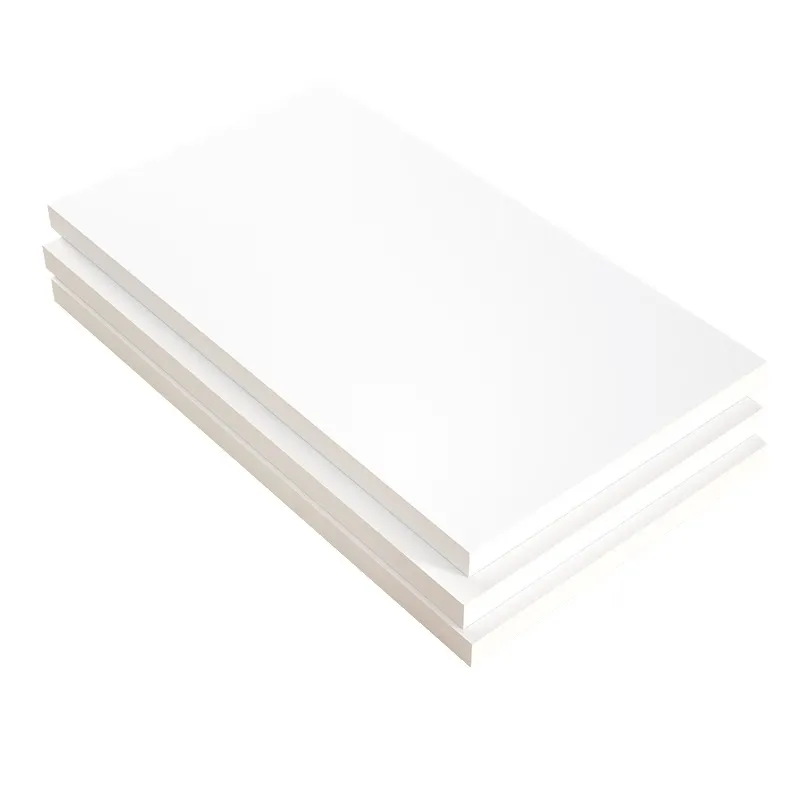

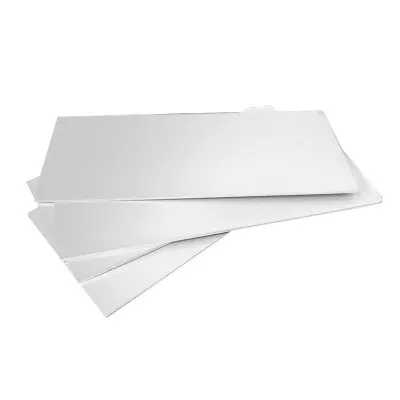

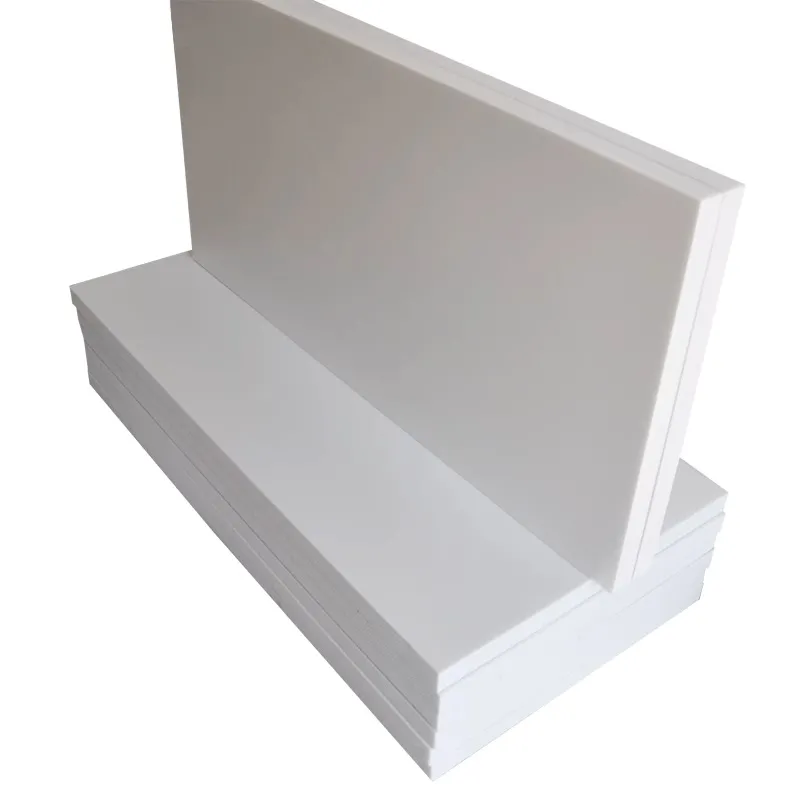

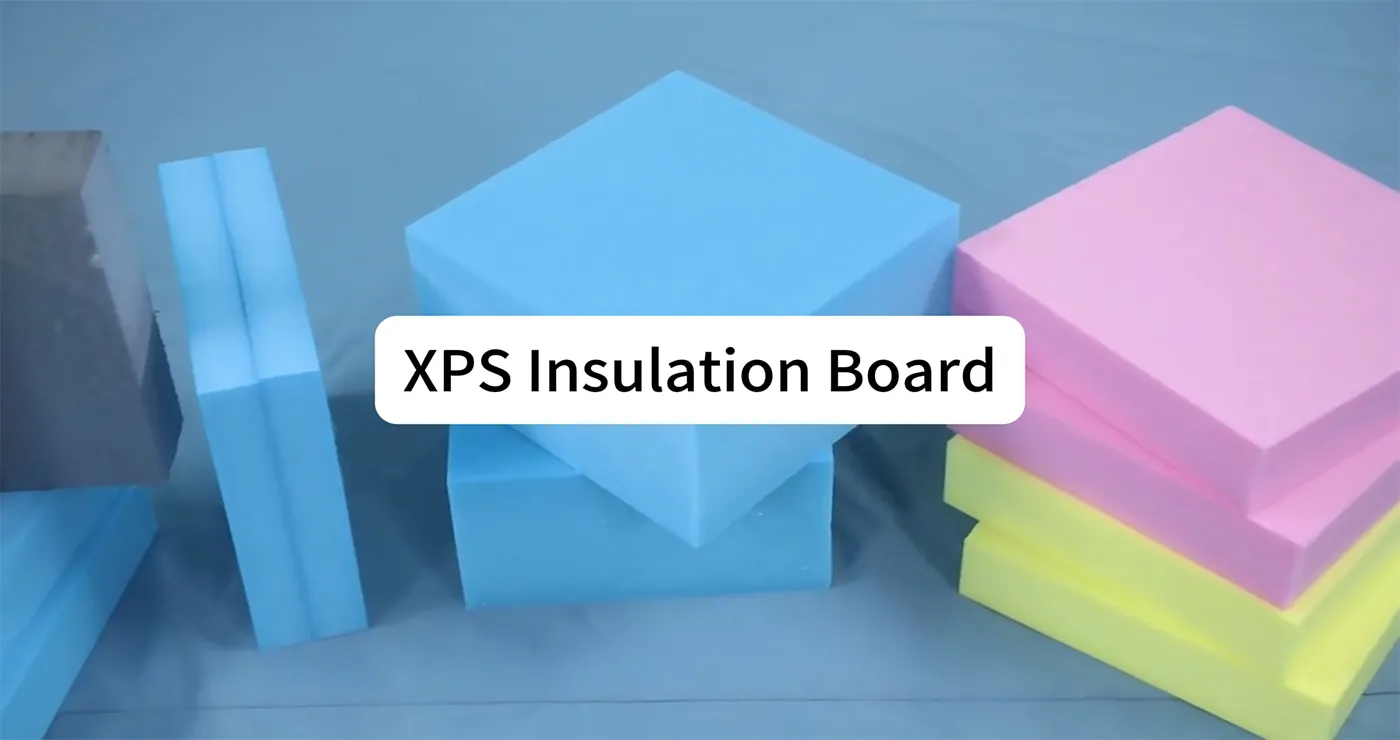

Extruded Polystyrene (XPS) is a high-performing, rigid foam insulation board. The closed-cell structure of the foam insulation boards keeps moisture out. The XPS insulation board comes in many grades for applications wherein resistance to heavy loads and extreme moisture is required. In theory, it is stronger and has better mechanical properties than EPS. It is also more expensive compared to EPS.High-grade product type of exterior wall insulation board made of polystyrene foam material.It has excellent insulation performance and durability, effectively improving the energy efficiency and insulation effect of the building.
Products Description

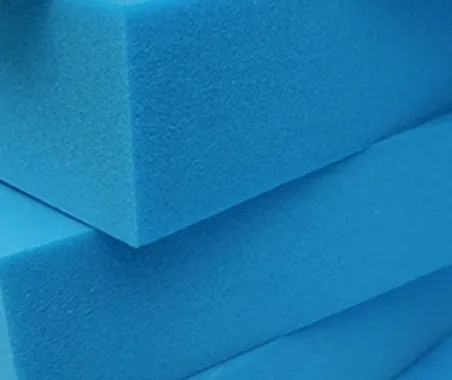

Extruded Polystyrene (XPS) is made of polystyrene resin and other additives through an extrusion process. It is a special extruded board for producing floor heating panels. And it has a continuous and uniform surface and a closed-cell honeycomb structure. This material has the characteristics of high compression resistance, light weight, non-absorbent, airtight, wear-resistant and degradation-resistant.
Moreover, it is light in texture, easy to use, will not mold, and has good corrosion resistance. It can not only be used as a thermal insulation material, but also effectively waterproof and moisture-proof.
01
Heat preservation and insulation
Closed cell structure can prevent air flow heat dissipation, good thermal insulation
02

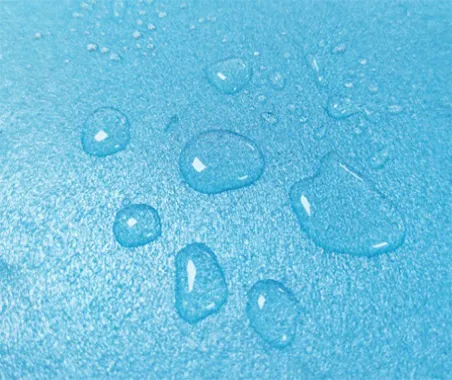

Good hydrophobicity
Closed cell structure, prevent the entry of water molecules, not easy to occur aging phenomenon.
03

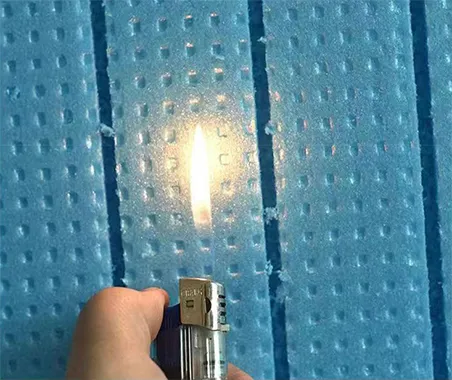

Fire and flame retardant
Contains fire-retardant smoke reducing raw materials, self-extinguishing from fire, more assured use.
04

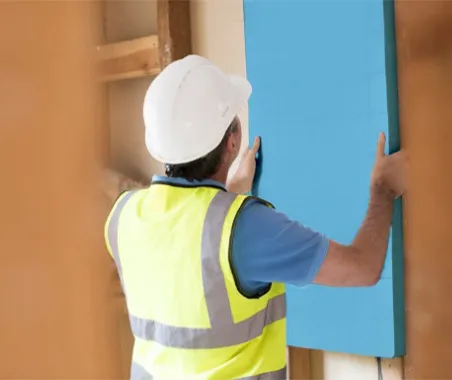

Convenient construction
Light material, easy to handle, easy construction, utility knife can be cut
05
Environmental Protection and Health
Polystyrene raw materials for production can be used in food packaging, truly achieving non-toxic, odorless, zero formaldehyde, and long service life that is not easily decomposed.
06
High density compression resistance
Fully closed cell foaming technology Lightweight texture, high strength, high energy resistance to high-intensity impact.

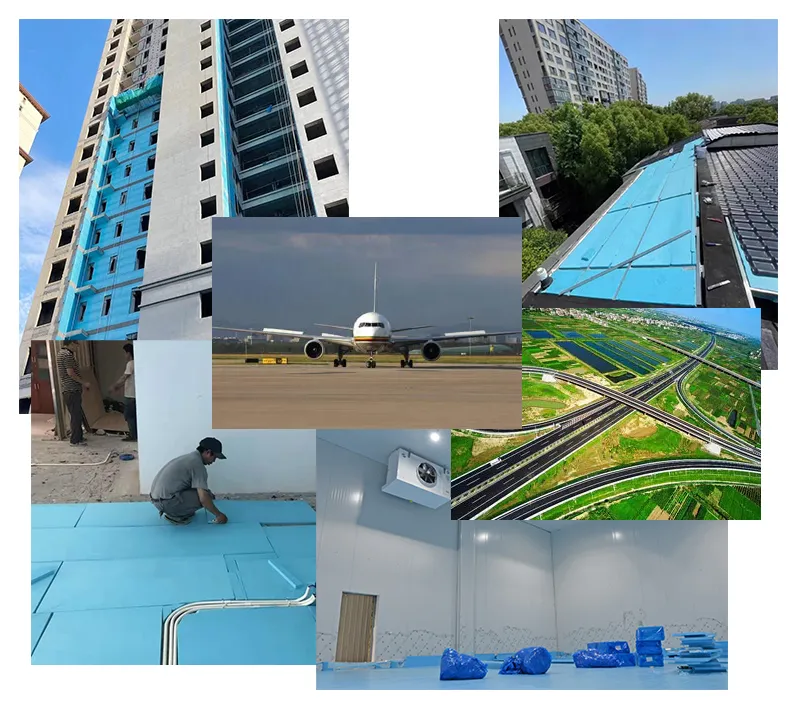

Application Scenario

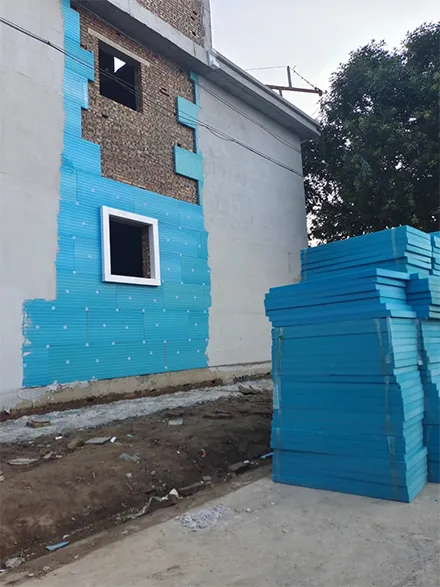

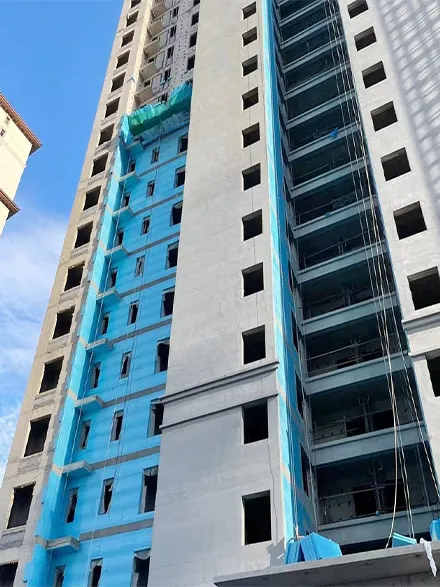

Building interior and exterior wall insulation
Roof and floor insulation

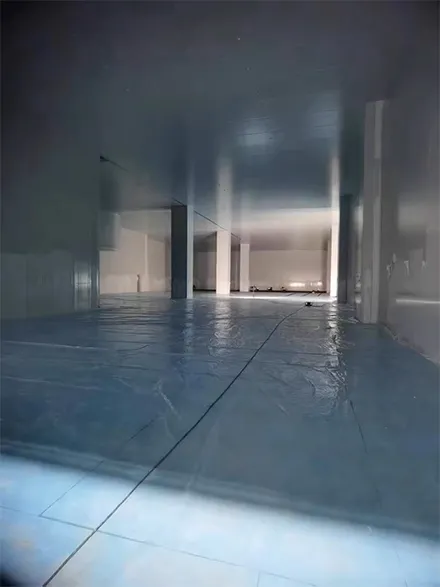

Cold storage and refrigerated truck insulation
Highway
Airstrip

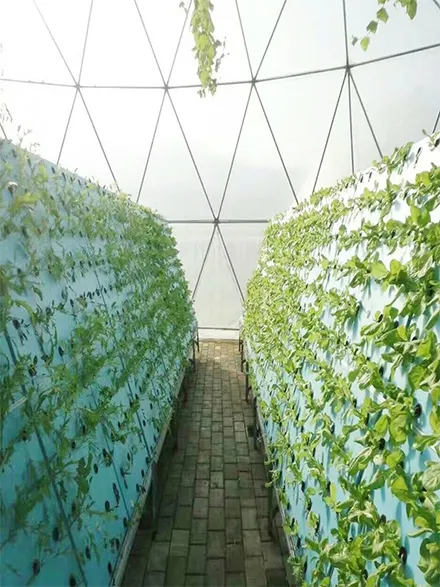

Hydroponic Plant Growth
Used for producing composite board
Used for producing underfloor heating board
Used for producing tile backer board
Technical Data
| Property | Standard | Value | |
| Xps Foam Density | EN 1602 | 25-60Kg/m³ | |
| Thermal Conductivity | EN 13164 | 0.034W/m.k | |
| Compressive Strength | EN 826 | 200kpa-1200kpa | |
| Water Absorption By Total Immersion | EN 12087 | ≤0.5% | |
| Dimensional Stability | EN 1604 | ＜5% | |
| Water Vapour Diffusion Resistance Factor | EN 12086 | 150 | |
Flatness | EN 825 | 6mm/m | |
| Compressive Creep Max 2% Deflection After 50 Years | EN 1606 | 150kpa | |
| Water Absorption By Freeze-thaw Cycling | EN 12091 | ＜1% | |
| Reaction To Fire | EN 13501-1 | Class E | |
| Rectangularity | EN 824 | ≤5mm/m | |
| Tensile Strength | EN 1607 | ≥600kpa | |
