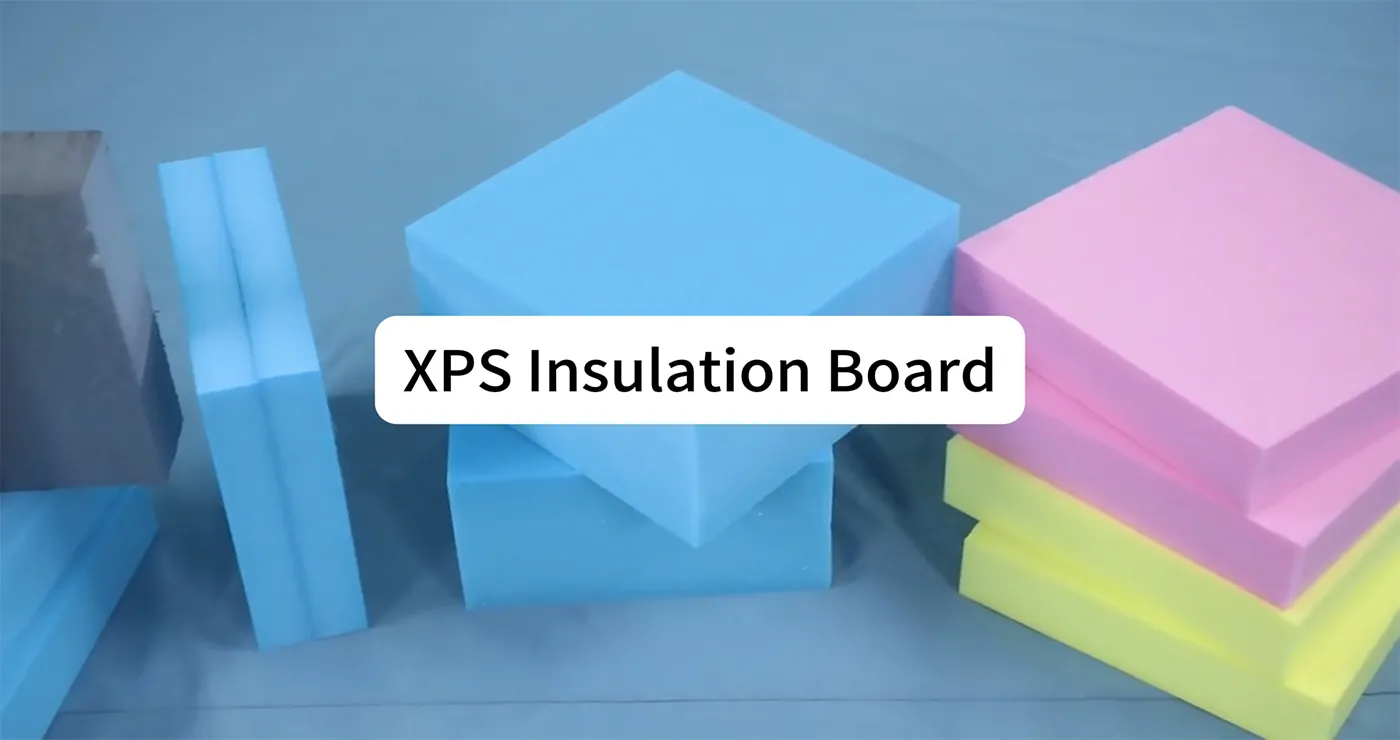

XPS or extruded polystyrene foam board, is a rigid polystyrene with high compressive strength. Its closed-cell structure provides excellent longterm thermal insulation performance because of its inherent resistance to moisture transfer.
Products Description

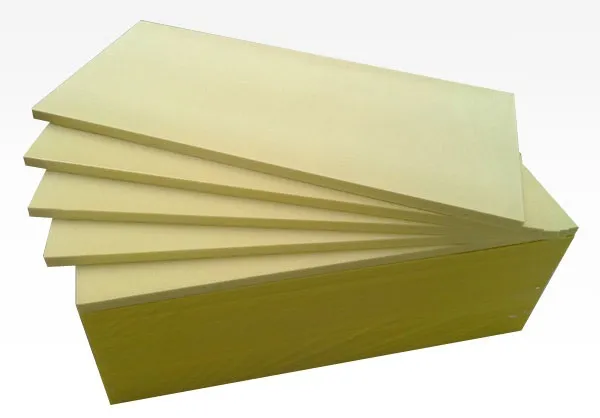

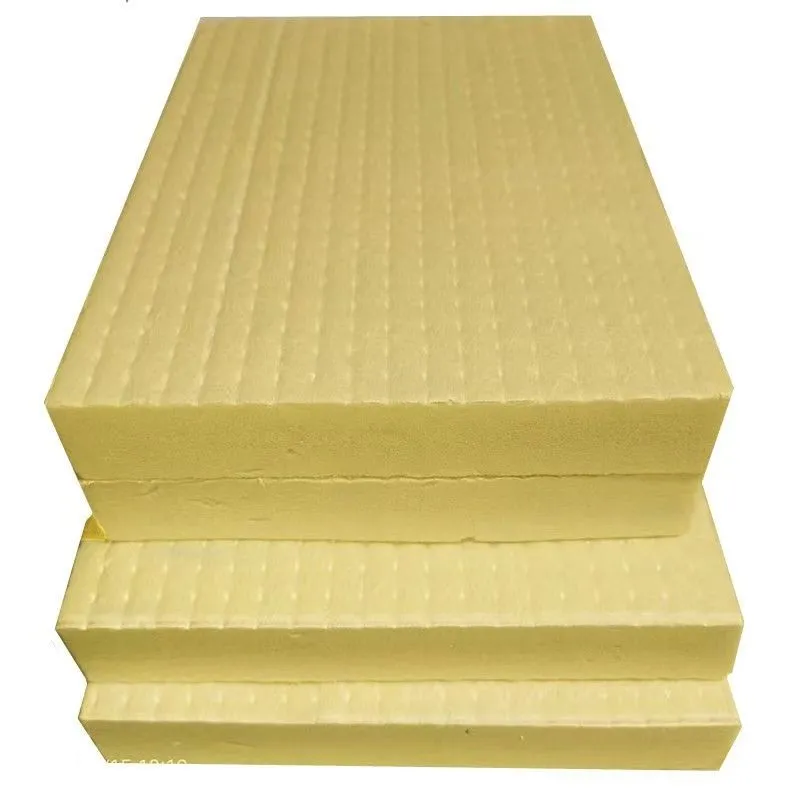

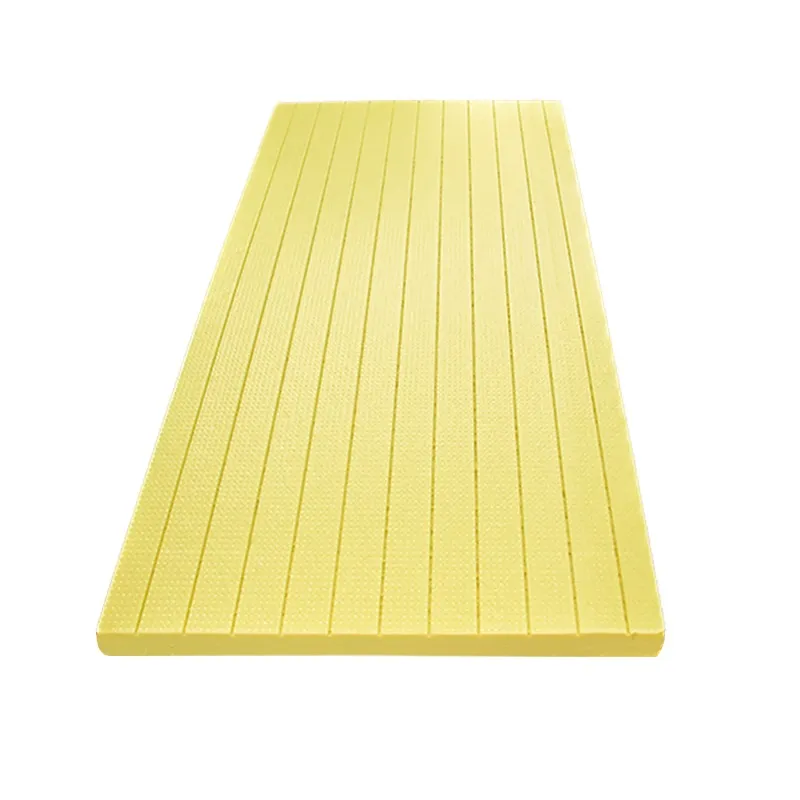

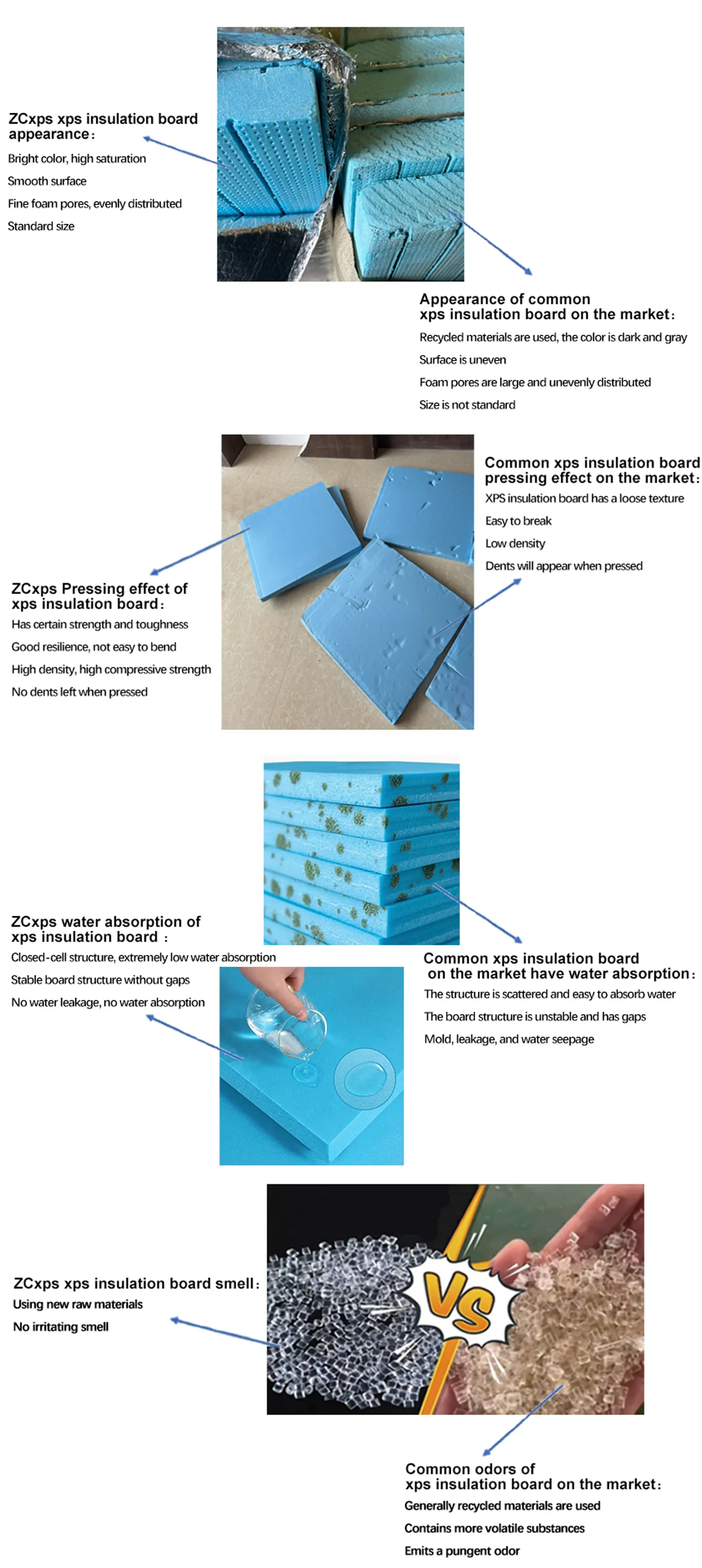

XPS or extruded polystyrene foam board is a kind of rigid extruded polystyrene thermal insulation material. It is made of polystyrene raw material and imported from Berstorff, Germany. Widely used in the production of tile backer board and underfloor heating board, etc.It is produced in strict accordance with the ISO quality management system control conditions through a special process of heating and extrusion molding. It is a high-performance rigid foam plastic with a honeycomb closed-cell structure. The interconnected walls of these honeycomb structures have a certain thickness and no gaps. Therefore, the uniform structure formed during the extrusion process gives the product excellent thermal insulation performance, good moisture resistance and high compressive resistance.
01
Heat preservation and insulation
Closed cell structure can prevent air flow heat dissipation, good thermal insulation.
02

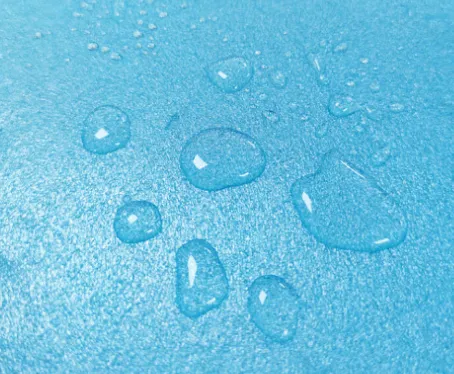

Good hydrophobicity
Closed cell structure, prevent the entry of water molecules, not easy to occur aging phenomenon.
03
Fire and flame retardant
Contains fire-retardant smoke reducing raw materials, self-extinguishing from fire, more assured use.
04
Fire and flame retardant
Contains fire-retardant smoke reducing raw materials, self-extinguishing from fire, more assured use.
05
Environmental Protection and Health
Polystyrene raw materials for production can be used in food packaging, truly achieving non-toxic, odorless, zero formaldehyde, and long service life that is not easily decomposed.
06
High density compression resistance
Fully closed cell foaming technology Lightweight texture, high strength, high energy resistance to high-intensity impact

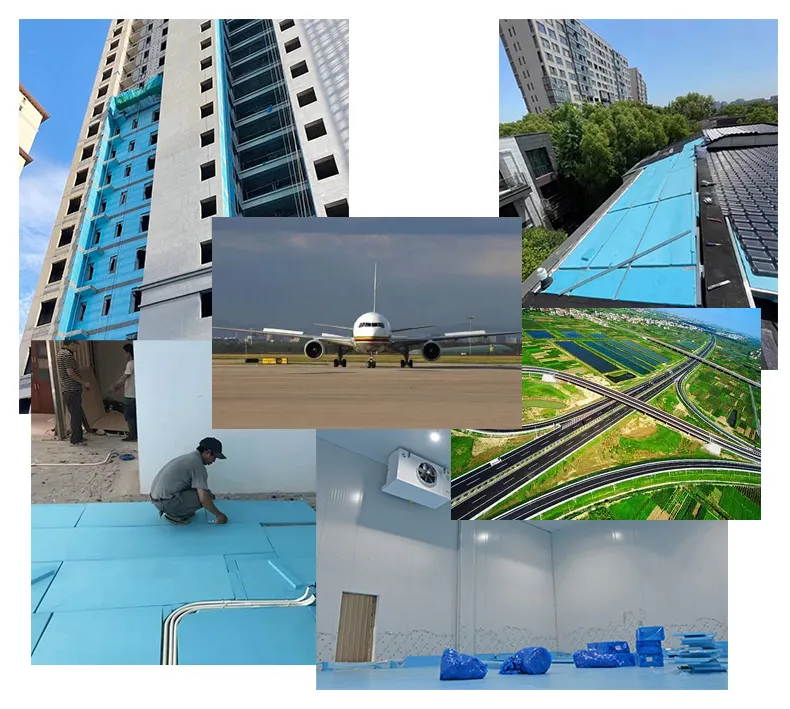

Application Scenario

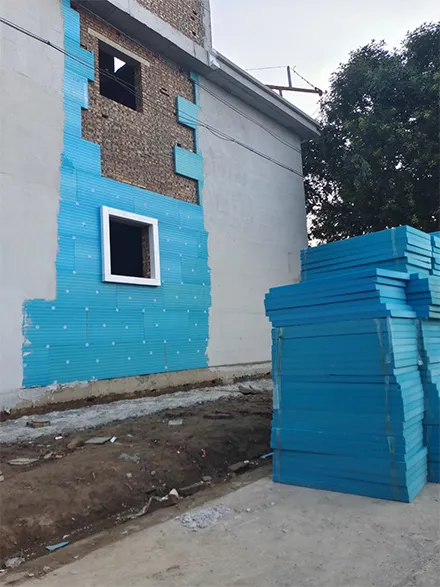

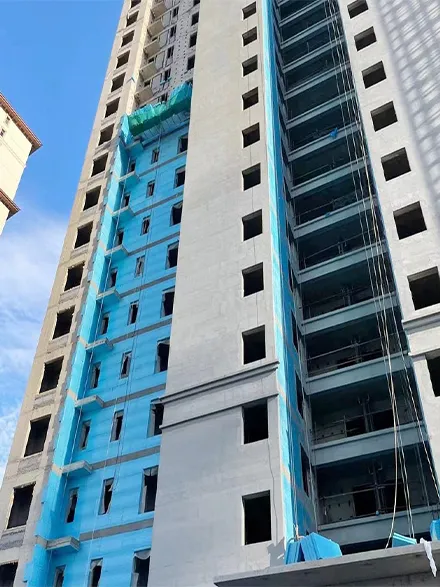

Building interior and exterior wall insulation

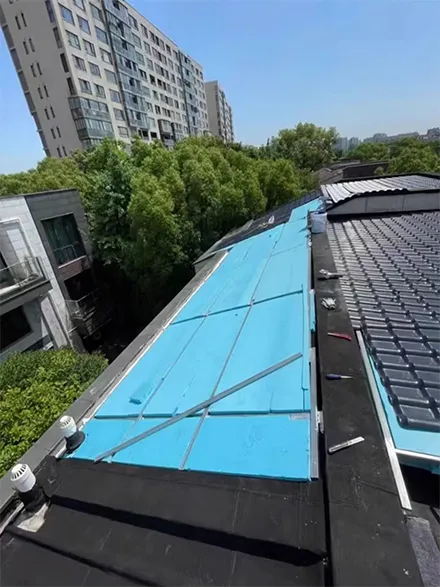

Roof and floor insulation

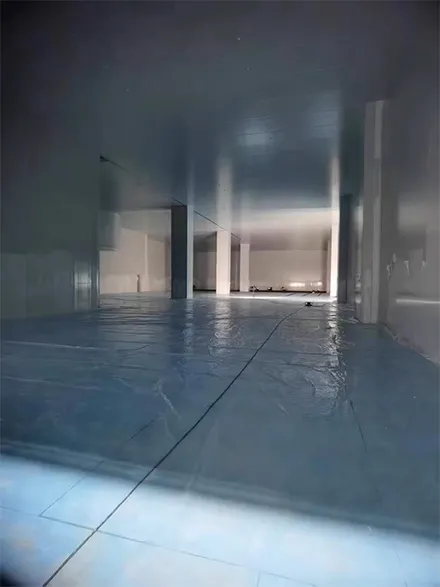

Cold storage and refrigerated truck insulation
Highway
Airstrip

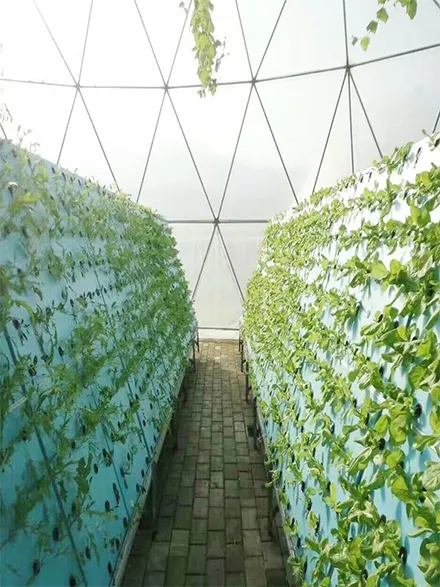

Hydroponic Plant Growth
Used for producing composite board
Used for producing underfloor heating board
Used for producing tile backer board
Technical Data
| Property | Standard | Value | |
| Xps Foam Density | EN 1602 | 25-60Kg/m³ | |
| Thermal Conductivity | EN 13164 | 0.034W/m.k | |
| Compressive Strength | EN 826 | 200kpa-1200kpa | |
| Water Absorption By Total Immersion | EN 12087 | ≤0.5% | |
| Dimensional Stability | EN 1604 | ＜5% | |
| Water Vapour Diffusion Resistance Factor | EN 12086 | 150 | |
Flatness | EN 825 | 6mm/m | |
| Compressive Creep Max 2% Deflection After 50 Years | EN 1606 | 150kpa | |
| Water Absorption By Freeze-thaw Cycling | EN 12091 | ＜1% | |
| Reaction To Fire | EN 13501-1 | Class E | |
| Rectangularity | EN 824 | ≤5mm/m | |
| Tensile Strength | EN 1607 | ≥600kpa | |
